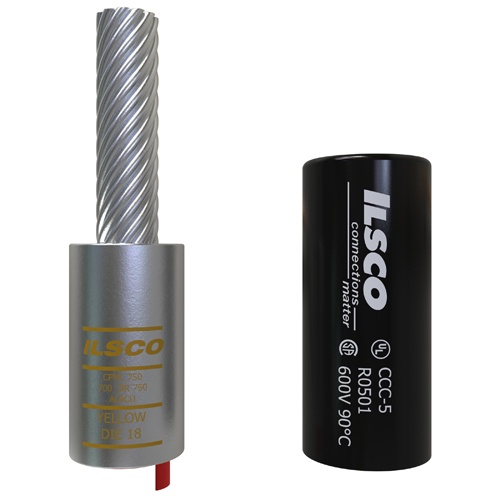

Ilsco CPML-750 Pigtail Adaptor - Copper, 750-700 MCM, Stranded, 600 V, Silver
Normally In Stock
Code: 588994
Ilsco CPML-750 - Copper Compression Pigtail Adaptor, Conductor Size 750, Long Barrel, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$203.44
Sale Price
$156.49
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CPML-750 - The Copper Compression Pigtail Adaptor is UL and CSA listed with a conductor size of 750 kcmil. Made of copper with aluminum conductors, it features a tin-plated finish and DE-OX® technology. Dual rated for 600V, it is suitable for temperatures up to 90°C and includes insulating cover. 180° compression connection with yellow color code. 2.75" long barrel with 1.5" outside diameter and 1.015" inside diameter. Contains replacement cover. Pin size: 500 kcmil. Voltage rating without cover: 35 kV. Pin diameter: 0.813" and length: 3". Cover length: 3.844". NEMA Code: S-588-3. Technical drawing and safety data sheet available.
Specifications
Color
Silver
Manufacturer
Ilsco
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
1
Terminal for Wire Gauge
750-700 MCM
Component
Pigtail Adaptor
Features
Barrel manufactured from high strength aluminum alloy
Pigtail manufactured from high conductivity copper
Chamfered barrel
UL Listed and CSA Certified for 600 volts, 90˚ C
Clearly marked with wire size and die index for ILSCO tools, proper number and location of crimps
Prefilled with DE-OX
Color coded end caps inserted in barrel
Supplied with insulating cover
Rated for full ampacity of incoming conductor
