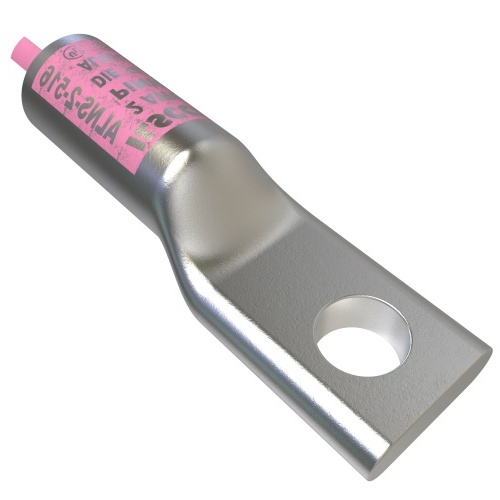

Ilsco ALNS-2-516 Compression Lug - Aluminum, 2 AWG, Stranded, 35 kV, 5/16", Silver
Normally In Stock
Code: 588827
Ilsco ALNS-2-516 - Surecrimp Aluminum Compression Lug, Conductor Size 2, 1 Hole, 5/16in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$15.90
Sale Price
$12.23
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALNS-2-516 - Surecrimp Aluminum Compression Lug with 5/16in bolt size, UL Listed, CSA Certified. Conductor Size 2, Dual Rated for aluminum and copper stranded wire. Tin-plated finish, 35 kV voltage rating, 90°C temperature rating. Long barrel design with 1 hole for compression connection. Tang dimensions: 0.218in thickness, 0.875in length, 0.7in width.
Expanded conductor range: 2 Str - 6 Str. Color: Silver, Barrel Marking: Hard. DE-OX® included. Mounting hole diameter: 0.343in, Thru-hole type. Suitable for C22.2 No. 65-03 CSA standard compliance. No sight window, undrilled. ROHS Indicator: IND.
Specifications
Color
Silver
Terminal Stud Size Opening
5/16"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
2 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚C
