Code: 58408

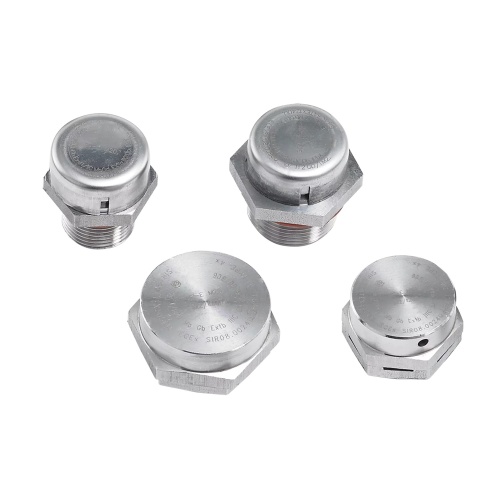

nVent Hoffman EXDBDM20SS6 Hazardous Locations Breather Drain
nVent Hoffman EXDBDM20SS6 Hazardous Locations Breather Drain
Condition: New
Usually ships Same Day or Next Day$273.85
Sale Price
$228.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman EXDBDM20SS6 Hazardous Locations Breather Drain Hazardous Location Breather Drains prevent moisture build-up within hazardous approved enclosures while maintaining enclosure UL Type rating. Drains are to be used when an enclosure is subject to fluctuations in temperature which can lead to the formation of condensation and a subsequent moisture build-up. These drains allow air within an enclosure to breathe with the surrounding atmosphere, preventing condensation and any potential damage to electrical equipment.
Specifications
Component
Breather Drain
Sub Component
Hazardous Location Breather Drain
(Pressure-Humidity Component) Composition
Stainless Steel
Purging Hazardous Classification
ATEX Directive 94-9-EC Zone 1
Purging Hazardous Classification
ATEX Directive 94-9-EC Zone 2
(Pressure-Humidity Component) NEMA Rating
NEMA Type 4
(Pressure-Humidity Component) NEMA Rating
NEMA Type 4X
Manufacturer
Hoffman
Features
Position at the lowest point of an enclosure to ensure optimal draining of any moisture
Effectively drain any water present within the enclosure
Minimize moisture build-up within the enclosure by allowing air in the enclosure to breathe with surrounding atmosphere
Maintain enclosure's UL Type rating when properly installed
Prevent condensation when installations are subject to fluctuations in temperature in hazardous locations
Reduce corrosion that can limit the life of internal electrical and electronic components
Available for Increased Safety (Ex e) and Flameproof (Ex d) applications
Install in a clearance hole 0.5 to 1.0mm larger than major diameter, or in a tapped hole
10mm thread length
Includes castellated nut and nitrile O-ring
Ex e Breather Drains:
Operating temperature of -58 F (-50 C) to 185 F (85 C)
Ex d Breather Drains:
16mm thread length
Install in a tapped hole
Ex d Breather Drains operating temperature of -22 F (-30 C) to 302 F (150 C)
Includes silicone O-ring
Downloads
Hoffman EXDBDM20SS6 2D DXF CAD.zipHoffman EXDBDM20SS6 3D STEP CAD.zipHoffman EXDBDM20SS6 Declaration of Compliance.pdfHoffman EXDBDM20SS6 Dimension Drawing.gifHoffman EXDBDM20SS6 EU Certification.pdfHoffman EXDBDM20SS6 Instruction Manual.pdfHoffman EXDBDM20SS6 Spec Sheet.pdfHoffman EXDBDM20SS6 UL Certification.pdf
