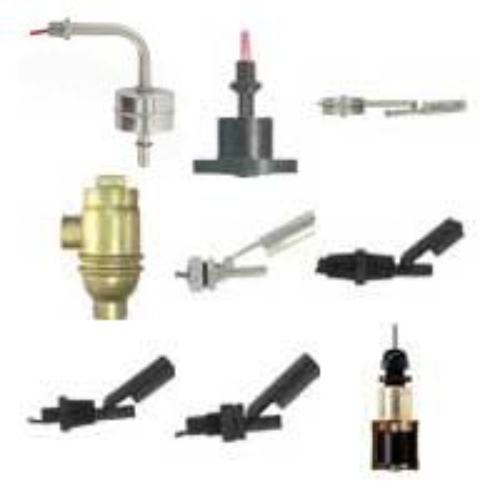

Dwyer F6-SS Level Switches – Vertical
Normally In Stock
Code: 570919
Dwyer F6-SS - Vertical level switch, 316SS float and stem, temperature limit 257°F (125°C), pressure limit 218 psig (15 bar), 0.65 min. specific gravity, electrical rating 20 VA: 0.08A @ 240 VAC, 22 AWG 11.8" (30 cm) wire leads, 1/8" male NPT mounting, weight 1.59 oz (45 g).
Condition: New
Usually ships Same Day or Next Day$72.19
Sale Price
$60.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer F6-SS level switch is a vertical-mount device with an enclosure rating of general purpose. It has an temperature range of -4 to 257°F (-20 to 125°C), and an electrical connection of 22 AWG, 11.811" (300mm) long. It is suitable for use with compatible liquids and has a pressure limit of 218 psi (15 bar). The switch type is SPST hermetically sealed reed switch, reversible for NO or NC. It has a specific gravity of 0.65 (F6-SS), 0.85 (F6-MHS), and 0.6 (F6-HPS-11, 21, 31). The magnet used is Alnico (F7-SB, -PP, -BT, -HPS) or ceramic (F7-SS2, -HSS, -MHS). The wire leads vary in length depending on the model.
Specifications
(Instrument-Sensor) Application
Liquid
Component
Level Switch
(Instrument-Sensor) Type
Vertical
(Instrument-Sensor) Temperature Range
-4 - 257°F/-20 - 125°C
(Instrument-Sensor) Temperature Range
14 - 176°F/-10 - 80°C
Manufacturer
Dwyer Instruments
