Code: 56909

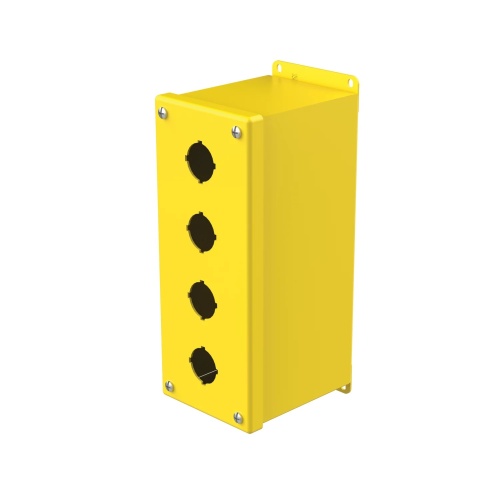

nVent Hoffman E4PBXY Steel 30.5mm Push Button Extra Deep Steel Enclosure
nVent Hoffman E4PBXY 10" x 4" x 4.75" Type 12,Type 13 Indoor 4 Hole 30.5-mm Push Button Extra Deep Steel Enclosure Yellow (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$300.94
Sale Price
$250.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman E4PBXY Steel 30.5mm Push Button Extra Deep Steel Enclosure 30.5-mm Extra-Deep Steel Pushbutton Enclosure Type 12,13 indoor use for pushbuttons and switches, with added depth to accommodate additional pushbutton contact blocks.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
Gray
Enclosure Composition
Painted Steel
Enclosure Depth
4.75"
Enclosure Door Type
Pushbutton 30.5 mm
Enclosure Interior Color
Yellow
Enclosure Width
4"
Component
Push Button Enclosure
Enclosure Environment Rating
Indoor
Enclosure Height
10"
Enclosure Latch Type
Screw
Push Button Number
4
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Oil-resistant gasket
Bonding provision on cover
Grounding stud on body
Factory stamped 4-way pushbutton holes
Captivated cover screws thread into sealed wells
Seams continuously welded and ground smooth
Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
30.5-mm or 22.5-mm size holes
External welded-on mounting brackets for easy installation
