Code: 568908

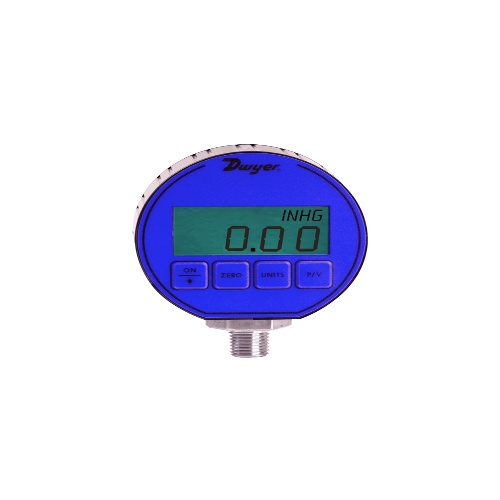

Dwyer DPG-110 Digital Pressure Gauge
Normally In Stock
Dwyer DPG-110 - Digital pressure gauge, selectable engineering units: 3000 psi, 210.9 kg/cm², 206.9 bar, 6108" Hg, 6921 ft w.c., CE and FM approved
Condition: New
Usually ships Same Day or Next Day$410.24
Sale Price
$341.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer DPG-110 is a digital pressure gauge with a temperature range of 0 to 130°F. It has an accuracy of 0.5% FS, with power supplied by two AAA alkaline batteries. The gauge is designed with an NEMA 4/4X (IP66) enclosure and features a 4-digit display. It is compatible with liquids and combustible gases, and the wetted material is Type 316L SS. The pressure limit is 2x the pressure range, and the process connection is 1/4" male NPT. The gauge has a thermal effect and dimensions of 3.00" OD x 1.90" deep. The battery life is 2000 hours, and it has an auto shut-off feature.
Specifications
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) IP Protection
IP66
Component
Digital Pressure Gauge
(Instrument-Sensor) Application
Liquid
(Instrument-Sensor) Application
Gas
(Instrument-Sensor) Measurement Accuracy
0.50%
(Instrument-Sensor) NEMA Protection
NEMA 4/4X
(Instrument-Sensor) Temperature Range
0 - 130°F/-18 - 55°C
(Instrument-Sensor) Supply Voltage
AAA Battery
Manufacturer
Dwyer Instruments
Features
High accuracy provides exceptional measurement minimizing costly out of specification conditions
Backlit 4-digit display provides clear parallax-free reading reducing potential for errors
Battery-powered gage with auto-shutoff eliminates wiring and prolongs battery life reducing service calls
Push-button zero reduce installation and service time
