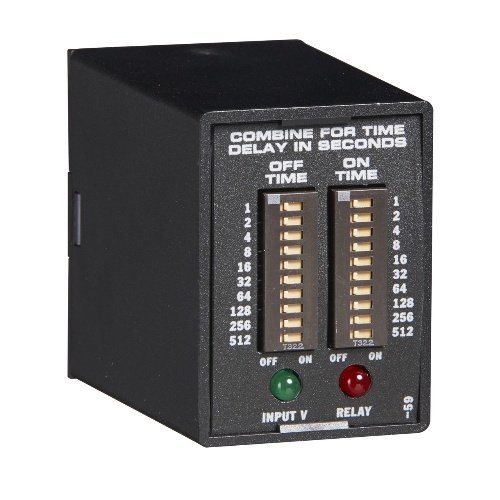

Littelfuse TDR4A33 Time Delay Relay - 120 Volt, Double Throw, Double Pole
Normally In Stock
Code: 566418
Littelfuse TDR4A33 - Relay Output, Recycling Time Delay Relay Series - 120 Volt - Plug-in socket - 10 A resistive @ 120/240 V ac and 30 V dc; 1/3 hp @ 230 V ac (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$195.42
Sale Price
$162.85
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse TDR4A33 is an octal 8-pin plug-in time delay relay with a load rating of 10A @ 120/240V ac and 30V dc. It has a power consumption of ≤2 VA and a reset time of ≤150 ms. The time delay type is microcontroller, with a setting accuracy of ≤±2% or 50 ms. This relay features an input green LED indication for voltage application and a relay red LED indication when the output relay is energized.
Specifications
Relay Throws
Double Throw
Relay Poles
Double Pole
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
120 Volt
Relay Mounting
Plug-In Socket
Sub Component
Recycle
Relay Timing Range
10 - 10230 S
Features
ON & OFF time delay settings
3 Time Ranges Available (0.1s to 2.8h)
Microcontroller based
DIP switch adjustment
Isolated output contacts A
LED indication (select models)
