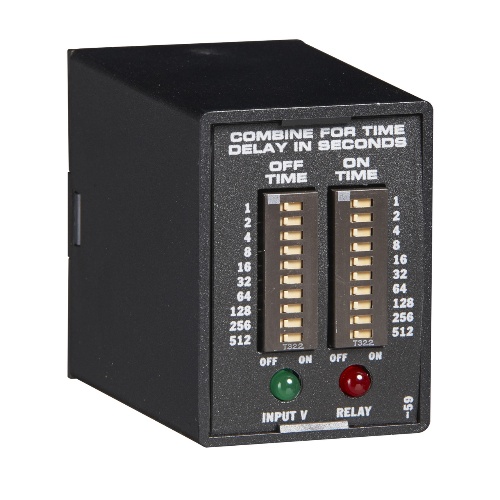

Littelfuse TDR2A23 Time Delay Relay - 24 Volt, Double Throw, Double Pole
Normally In Stock
Code: 566412
Littelfuse TDR2A23 - Relay Output, Recycling Time Delay Relay Series - 24 Volt - Plug-in socket - 10 A resistive @ 120/240 V ac and 30 V dc; 1/3 hp @ 230 V ac (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$212.12
Sale Price
$176.77
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse TDR2A23 is an 8-pin plug-in time delay relay with a load rating of 10A resistive at 120/240V AC and 30V DC. It has a 1/3 hp rating at 230V AC. The time delay type is microcontroller, with a repeat accuracy of ±0.1% or 20ms, insulation resistance of ≥100, and power consumption of ≤2VA. It has a reset time of ≤150ms, a life of electrical: 1x10^5 and mechanical: 1x10^7 cycles, and a recycle time of ≤500ms. The undervoltage trip voltage can be set from 0 to 23s in 1s increments, with OFF adjustment set at 10-10V. The setting accuracy is ≤±2% or 50ms, and it has an input green LED for voltage indication and a relay red LED for relay energization indication.
Specifications
Relay Throws
Double Throw
Relay Poles
Double Pole
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
24 Volt
Relay Mounting
Plug-In Socket
Sub Component
Recycle
Relay Timing Range
1 - 1023 S
Features
ON & OFF time delay settings
3 Time Ranges Available (0.1s to 2.8h)
Microcontroller based
DIP switch adjustment
Isolated output contacts A
LED indication (select models)
Downloads

Code: 566412
Littelfuse TDR2A23 Time Delay Relay - 24 Volt, Double Throw, Double Pole
$212.12
Sale Price
$176.77
MUST BUY IN PACKS OF 10
