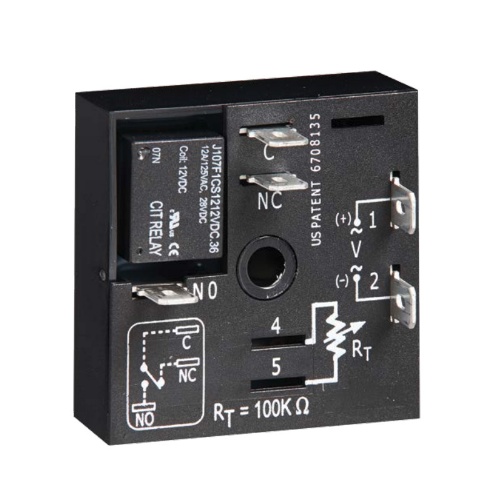

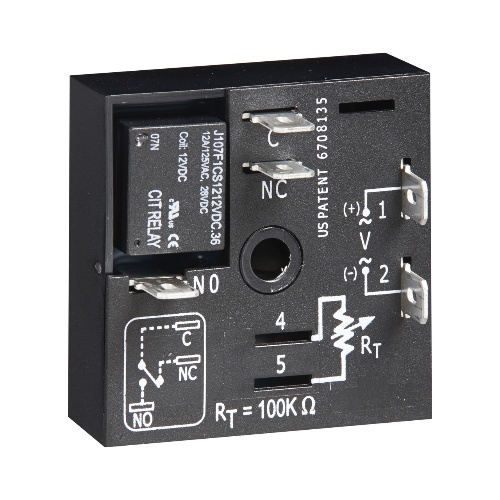

Littelfuse KRPSA24M is an encapsulated time delay relay with a termination type of 0.25 in. male quick connect terminals. It has an output load rating of 10 A @ 125 V AC, 5 A @ 230 V AC and 28 V DC, and 1/4 hp @ 125 V AC. It operates on an input AC line frequency of 50/60 Hz with a tolerance of -20% - 10%. This relay has a repeat accuracy of ±0.5% or 20 ms (whichever is greater) and a reset time of ≤150 ms. It offers high insulation resistance (≥100) and low power consumption (≤2 VA for AC and ≤2 W for DC). With a time delay type of microcontroller, it provides reliable and precise performance.
