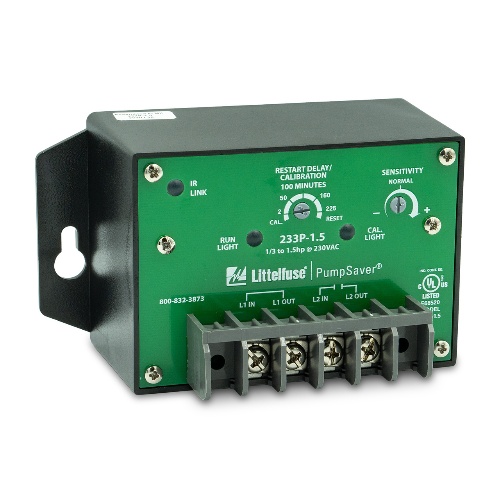

Littelfuse 233P-1.5 is a versatile and reliable product with a 1.5 hp load rating at 240 Volts (10 A max.). It features a torque termination type, suitable for solid or stranded 10 - 22 AWG wires. With an input AC line frequency of 50 / 60 Hz, it offers a varied trip delay range depending on the type of fault. With a maximum input power of 5, it offers a restart delay range for different types of faults. The undervoltage reset voltage is set at 190 Volts and the overvoltage trip voltage is set at 265 Volts. It also features a rapid cycle timer, allowing for 4 restarts within a 60 s period. The overcurrent trip class is set at 125% of the calibration point, offering excellent protection against overcurrents. The underload percentage is adjustable, ranging from 70 to 90% of calibrated run power. With an input load range of 1/3 - 1.5 hp, this product is perfect for various applications.
