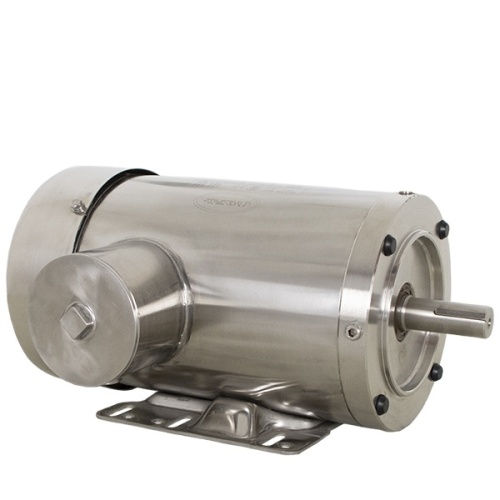

NAE PESS256TC20M-2-B - TEFC, 23/50 Amp, 20 HP, 208-460 VAC, 3600 RPM
Normally In Stock
Code: 555136
NAE-PESS256TC20M-2-B Special Purpose - Washdown Duty - Stainless Steel - Round Conduit Box with Encapsulation - 256TC Frame - 23/50 Amp - 20 HP - TEFC - 3600 RPM - 208-460 VAC
$8276.14
Sale Price
$6896.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE-PESS256TC20M-2-B Special Purpose - Washdown Duty - Stainless Steel - Round Conduit Box with Encapsulation - 256TC Frame - 23/50 Amp - 20 HP - TEFC - 3600 RPM - 208-460 VAC
Specifications
Features
.33-20 HP in stock
Service factor: 1.15 @ 60 Hz, 1.0 @ 50 Hz
NEMA Design B Performance/ High starting torque
Round conduit box for easy cleaning
Encapsulated windings
Dual-drilled feet for mounting flexibility
Double sealed bearings on both ends
2-year warranty
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
IP66 protection
Condensation drains with plugs
NEMA MG-1, Table 12-12
40° C ambient continuous duty
Dual voltage ratings suitable for part wind start on lower voltage
Windings rated for 2200V peak voltage spikes
.304 stainless steel shaft and body
