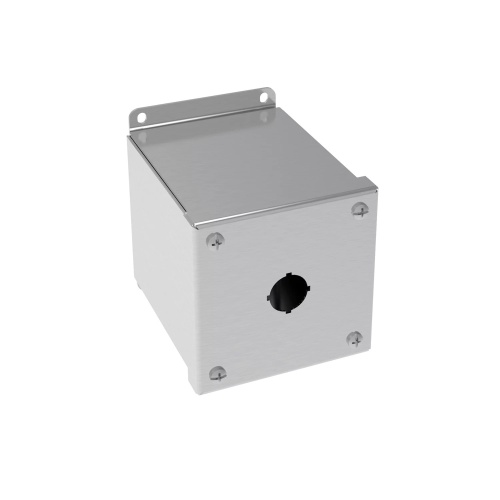

nVent Hoffman E1PBGXSS Stainless Steel 22.5mm Push Button Enclosure
Normally In Stock
Code: 5231
nVent Hoffman E1PBGXSS Enclosure Pushbutton Stainless Steel 1 hole Extra Deep Pushbutton Enclosure with for 22.5mm pushbuttons. 4 x 4 x 4.75 inch (HxWxD) 304 Stainless Steel Type 4X screw on cover with flat cover with factory stamped 4-way pushbutton holes. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$531.64
Sale Price
$443.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman E1PBGXSS Stainless Steel 22.5mm Push Button Enclosure Designed to house 22.5-mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dust, dirt, oil and water. Extra-deep design accommodates additional contact blocks for pushbuttons.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Composition
304 Stainless Steel
Enclosure Depth
4.75"
Enclosure Door Type
Pushbutton
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
4"
Component
Push Button Enclosure
Enclosure Height
4"
Enclosure Latch Type
Screw
Push Button Number
1
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Bonding provision on door, grounding nut on body
Captivated stainless steel cover screws thread into sealed wells
Enclosures 8.50 x 4.00 x 4.75 in. (216 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
Oil-resistant gasket
Seams continuously welded and ground smooth
Extra-deep design accommodates additional contact blocks for pushbuttons.
