Code: 5235

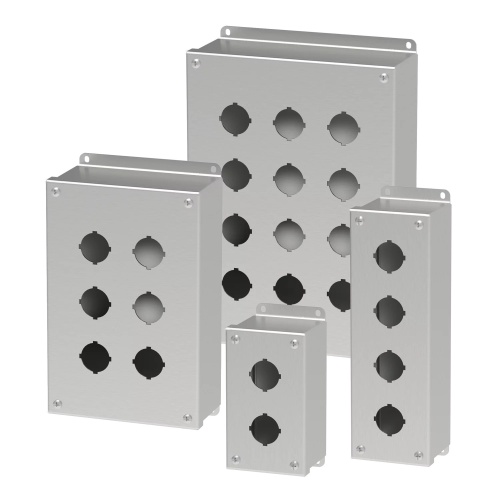

nVent Hoffman E1PBSS Stainless Steel 30.5mm Push Button Enclosure
nVent Hoffman E1PBSS Enclosure Pushbutton Stainless Steel 1 hole 30.5mm Pushbutton Enclosure 3.5 x 3.25 x 2.75 inch (HxWxD) 304 Stainless Steel Type 4X screw on cover with flat cover with factory stamped 4-way pushbutton holes. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$396.17
Sale Price
$330.14
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman E1PBSS Stainless Steel 30.5mm Push Button Enclosure Punched specifically to house either 30.5-mm or 22.5-mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dirt, dust, oil and water, See Mild Steel chapter for related mild steel enclosures.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Composition
304 Stainless Steel
Enclosure Depth
2.75"
Enclosure Door Type
Pushbutton 30.5 mm
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Width
4"
Enclosure Height
3.5"
Component
Push Button Enclosure
Enclosure Latch Type
Screw
Push Button Number
1
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
Captivated cover screws thread into sealed wells
Bonding provision on door, grounding nut on body
Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
Seams continuously welded and ground smooth
Prepunched 30.5mm or 22.5mm holes
Oil-resistant gasket
