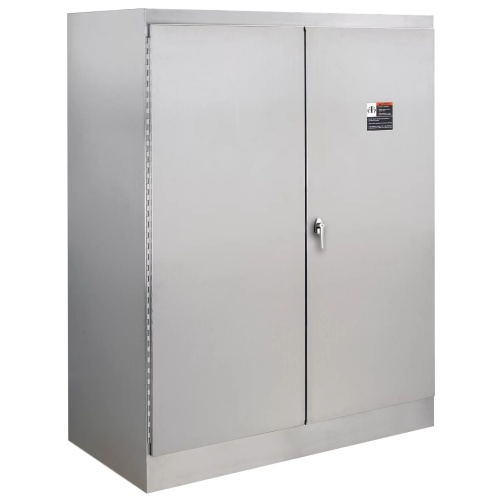

nVent Hoffman A726036SSFSD Stainless Steel Enclosure
Normally In Stock
Code: 5003
nVent Hoffman A726036SSFSD Enclosure Stainless Steel 72.06 x 60.06 x 36.06 inch (HxWxD) Type 12 Indoor 304 Stainless Steel Enclosure with Heavy-gauge continuous hinges support each door. Plated steel 3-point latching and keylocking handle. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$28103.15
Sale Price
$23419.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A726036SSFSD Stainless Steel Enclosure Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. These enclosures are used extensively in automotive, pulp and paper, wood products, textile and similar industries.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Lock Type
Keylocking
Enclosure Mount Type
Free-Standing
Enclosure Depth
36"
Enclosure Composition
304 Stainless Steel
Enclosure Latch Type
3 Point
Enclosure Width
60"
Enclosure Height
72"
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Plated steel 3-point latching and keylocking handle
Stiffeners welded to back of enclosures maintain flatness and increase rigidity
Heavy-duty lifting eyes are Type 316 stainless steel
Heavy-gauge continuous hinges support each door
Seams continuously welded and ground smooth, no holes or knockouts
Capable of complex mounting configurations by addition of 19 inch rack-mounting accessory in Type 12 environments
Data pocket, provided on door(s) with 3-point latches, is high-impact thermoplastic
Bonding provision on door, grounding studs on body
Oil-resistant door gasket attached with oil-resistant adhesive and held in place with steel retaining strips
Optional panels and rack-mounting angles can be mounted anywhere along channels
Mounting channels welded horizontally to interior body sides at top, bottom and center
Accessory mounting channel provided in enclosure top
Downloads
Hoffman A726036SSFSD 2D DXF CAD.zipHoffman A726036SSFSD 3D STEP CAD.zipHoffman A726036SSFSD CAD Drawing.zipHoffman A726036SSFSD CSA Certification.pdfHoffman A726036SSFSD Declaration of Compliance.pdfHoffman A726036SSFSD Enclosure Alterations Manual.pdfHoffman A726036SSFSD EU Certification.pdfHoffman A726036SSFSD Instruction Manual.pdfHoffman A726036SSFSD Large Enclosure Handling Manual.pdfHoffman A726036SSFSD Product Selection Guide.pdfHoffman A726036SSFSD Spec Sheet.pdfHoffman A726036SSFSD UL Certification.pdfHoffman A726036SSFSD User Manual.pdf
