Code: 495489

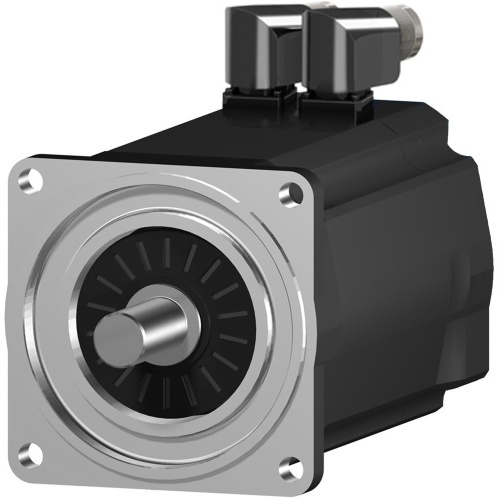

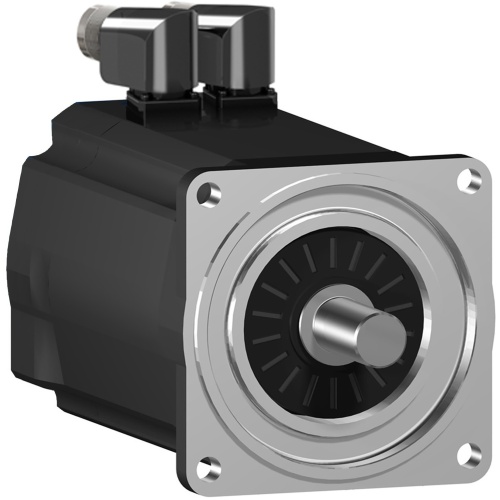

Schneider Electric SH31003P12F2000 Servo Motor - 115-480 Volt, 28.3 Amp, 3.2 HP, 6000 RPM, 3Ph
Normally In Stock
Schneider Electric SH31003P12F2000 servo motor SH3 100 8Nm, key, multi, brake, 90°conn.IP54/IP65, 6k RPM
Condition: New
Usually ships Same Day or Next Day$6143.39
Sale Price
$5119.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric SH31003P12F2000 is a three-phase motor with a power output of 2390W at 400V. It has a maximum mechanical speed of 6000 rpm and a peak stall torque of 250.48 lbf.in. The motor has a straight connector for electrical connection and uses natural convection for cooling. It is also equipped with a holding brake and features a parallel key shaft end. With a compact size and a sturdy construction, this motor is suitable for a wide range of industrial applications.
Specifications
Motor Voltage
230 Volt
Manufacturer
Schneider Electric
Motor Amperage (Full Load)
28.3 Amp
Motor Voltage
400 Volt
Motor Voltage
480 Volt
Motor RPM's
6000 RPM
Motor Horsepower
3.2 HP
Motor Voltage Phases
Three Phase
Features
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3
The 4-pole servo motor features maximum mechanical speed of 6000RPM and parallel key shaft end with holding brake
It is an equipped with an absolute multi-turn SinCos Hiperface® encoder with 128 periods speed feedback resolution
It is a servo motor with a rated supply voltage of 115V to 480V, a continuous stall current of 6.6A and a continuous power of 2400W
The shaft dimensions are 19mm (diameter) x 40mm (length)
It is furnished with rotatable right angled connectors for electrical connection
It is an IP54 and IP65 rated product
The length of this product is 271.5mm and the centering collar dimensions are 3.5mm (depth) x 95mm (diameter) with 115mm mounting hole
It weighs 8kg
This range is compatible with PacDrive 3 for motion centric machines
It supports 100mm international standard flange mount with a natural convection cooling system
Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions
Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
