Code: 475062
3M 7100163929 - Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip,MNG18-10R/LK, Stud Size 10
Normally In Stock
Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip,MNG18-10R/LK, Stud Size 10 - 7100163929
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$651.42
Sale Price
$542.85
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

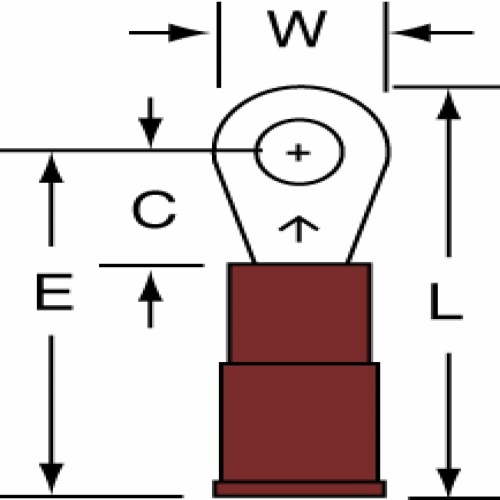

Scotchlok™ Ring Terminals (MNG18-10R/LK) are nylon-insulated, ring-shaped connectors designed for secure electrical connections. They have an overall length of 0.92 in and an overall width of 0.31 in, with a maximum conductor size of 18 AWG (0.823 mm²) and a minimum conductor size of 22 AWG (0.326 mm²). The terminal features a connection width of 0.19 in (4.826 mm) and is suitable for various electrical applications. - 7100163929
Specifications
Component
Ring Terminal
Manufacturer
3M
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Insulation Material
Nylon With Insulation Grip
Minimum Conductor Size (Metric)
0.326 mm²
Terminal Type
Ring
Maximum Conductor Size (Metric)
0.823 mm²
Sub Brand
Scotchlok
Overall Length (Imperial)
0.92"
Features
Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
