Code: 474902
3M 7000133377 - Scotchlok™ Ring Heatshrink, 25/bottle, MH10-8RX
Normally In Stock
Scotchlok™ Ring Heatshrink, 25/bottle, MH10-8RX - 7000133377
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$55.68
Sale Price
$46.40
SOLD BY THE CASE (1 Case = 125 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

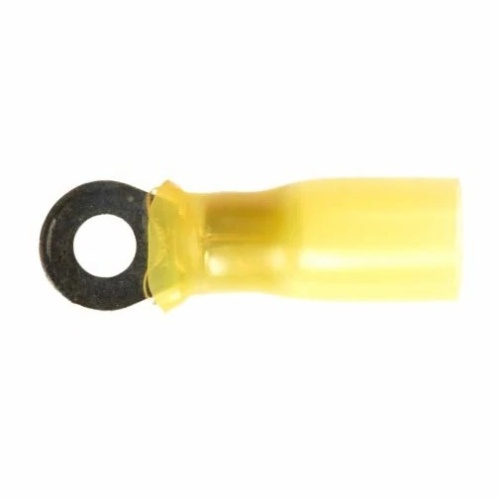

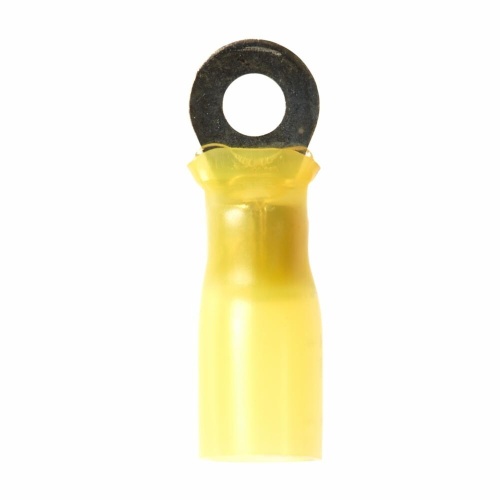

Scotchlok™ Ring Terminals (3MCatalog Number: MH10-8RX) are yellow heat shrink connectors for crimping. They have an overall length of 1.1 in (27.94 mm) and an overall width of 0.38 in (9.65 mm). They can handle maximum conductor sizes of 10 AWG (5.26 mm²) and minimum conductor sizes of 12 AWG (3.31 mm²). These terminals can withstand temperatures up to 105 ℃ and have a connection width of 0.164 in (4.166 mm). - 7000133377
Specifications
Color
Yellow
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Insulation Material
Heat Shrink
Overall Length (Imperial)
1.1 In
Terminal Type
Ring
Overall Length (Metric)
27.94 mm
Features
Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
