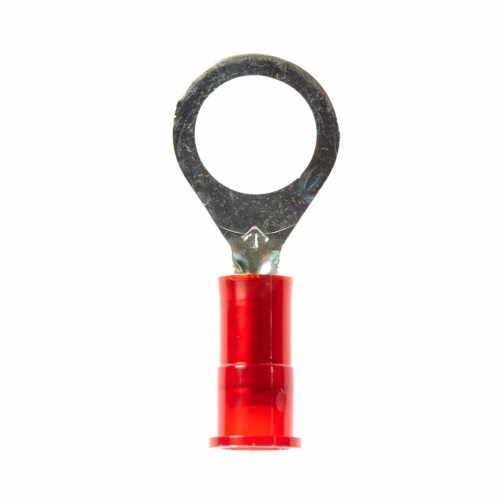

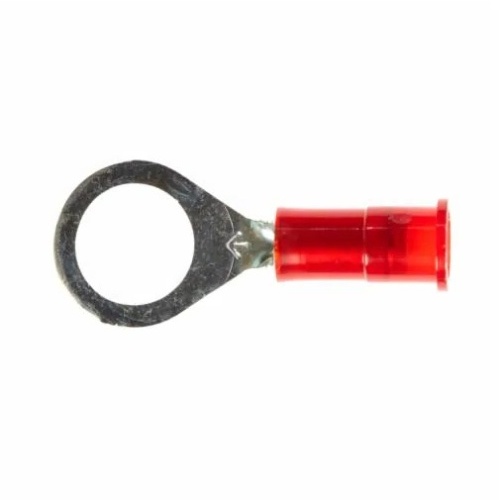

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 474831
3M 7000133424 - Scotchlok™ Ring Nylon Insulated, 50/bottle, MNG10-610RX
Normally In Stock
Scotchlok™ Ring Nylon Insulated, 50/bottle, MNG10-610RX - 7000133424
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$862.61
Sale Price
$718.84
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (MNG10-610RX) are yellow in color and made of nylon insulation material. They have an overall length of 1.19 in (30.22 mm) and an overall width of 0.39 in (9.9 mm). These ring terminals can accommodate a maximum conductor size of 10 AWG (5.26 mm²) and a minimum conductor size of 12 AWG (3.31 mm²). They have a maximum operating temperature of 105 ℃ and are suitable for various electrical applications. - 7000133424
Specifications
Color
Yellow
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Insulation Material
Nylon
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Terminal Type
Ring
Overall Length (Imperial)
1.19 In
Overall Length (Metric)
30.22 mm
Features
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Multi-stud style ring tongue fits around multiple stud sizes
Stud size #6 to #10
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
