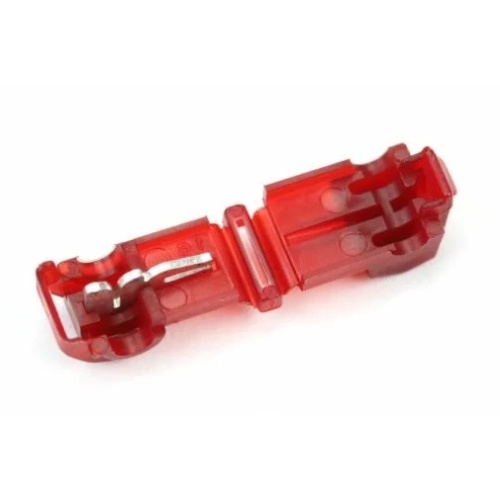

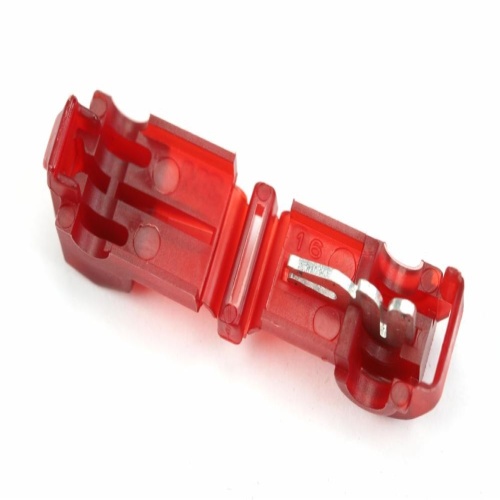

3M 7000005801 - Scotchlok™ Female QuickSlide Disconnect, T-Tap Nylon Insulated,Self-Stripping 951K, 22-18 AWG
Normally In Stock
Code: 474474
Scotchlok™ Female QuickSlide Disconnect, T-Tap Nylon Insulated,Self-Stripping 951K, 22-18 AWG - 7000005801
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$154.86
Sale Price
$129.05
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Quick Disconnects are insulated self-stripping connectors designed for reliable electrical connections. They have a maximum operating temperature of 105 ℃ (221 ℉) and can accommodate conductor sizes ranging from 22 AWG to 18 AWG (0.34 mm² to 1 mm²). The connectors are made of flame-retardant nylon and feature a tin-plated brass element. They are UL listed and recommended for use with a 600 V maximum voltage rating. The disconnects are red in color and have a female disconnect type with a T-tap connection style. - 7000005801
Specifications
Disconnect Type
Female
Color
Red
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
221 °F
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Maximum Conductor Size (Metric)
1 mm²
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Insulation Material
Nylon
Fastener Orientation
Female
Component
Quick Disconnect
Terminal Type
Disconnect
Material
Insulator: FR Nylon
Material
Element: Tin-Plated Brass
Features
Nylon-insulated connector electrically taps into a wire in mid-span without cutting
