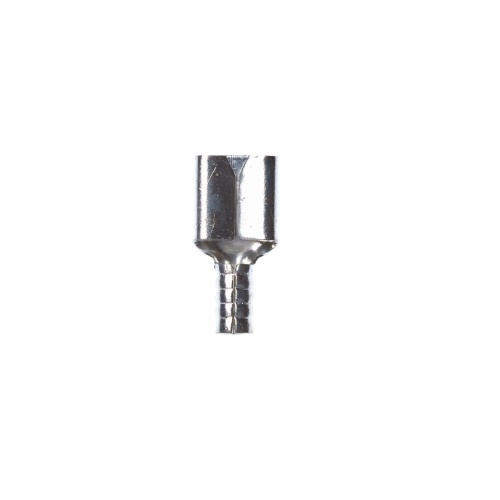

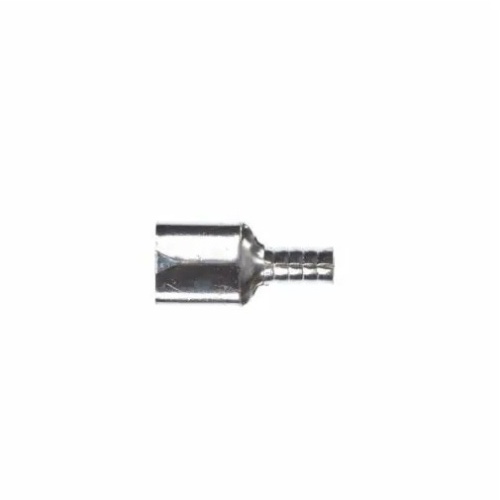

3M 7100164181 - Scotchlok™ Female Disconnect, Non-Insulated Butted Seam MU18-187DFK, 22-18 AWG
Normally In Stock
Code: 474450
Scotchlok™ Female Disconnect, Non-Insulated Butted Seam MU18-187DFK, 22-18 AWG - 7100164181
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$242.65
Sale Price
$202.21
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Quick Disconnects (MU18-187DFK) are non-insulated terminals designed for wireless network infrastructure accessories. They have an overall length of 0.58 in and can accommodate conductor sizes ranging from 18 AWG to 22 AWG. With a butted barrel style and a disconnect terminal type, these quick disconnects have a connection width of 0.187 in (4.75 mm) and a barrel inside diameter of 0.085 in. They are UL certified (file number E70512) and CSA certified (file number LR22190). Mates with male tab width of 0.187 in. - 7100164181
Specifications
Disconnect Type
Female
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Maximum Conductor Size (Metric)
1 mm²
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Terminal Style
Standard
Insulation Material
Non-Insulated
Fastener Orientation
Female
Component
Quick Disconnect
Terminal Type
Disconnect
Overall Length (Imperial)
0.58 In
Features
Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
Dents and rolled edges of this female disconnect terminal offer excellent holding force
Allows for quick and easy disconnect of wires
Made of durable brass for good conductivity and has corrosion-resistant tin plating
Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
Rated 600V for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
