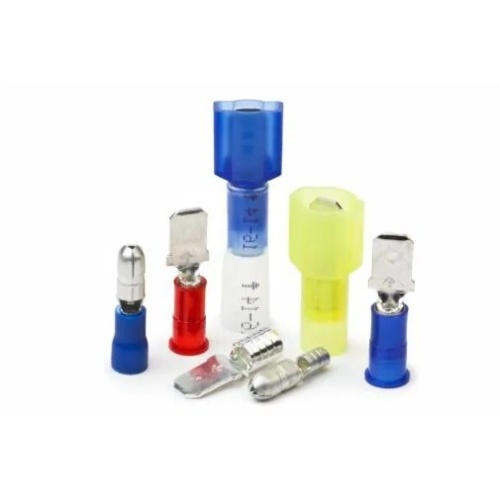

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

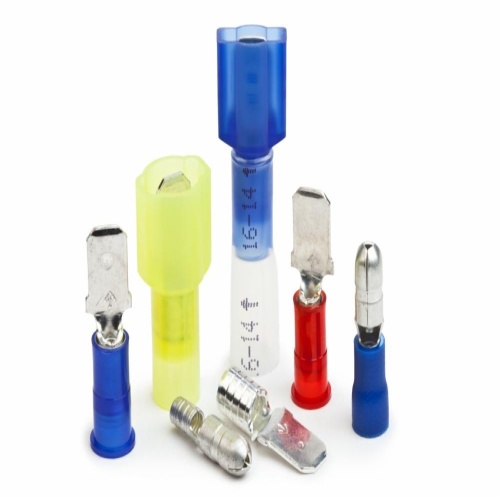

3M 7000133375 - Scotchlok™ Disconnect Male Nylon Insulated, 100/bottle, MNG14-156DMX-A
Normally In Stock
Code: 474398
Scotchlok™ Disconnect Male Nylon Insulated, 100/bottle, MNG14-156DMX-A - 7000133375
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$292.46
Sale Price
$243.72
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Quick Disconnects, MNG14-156DMX-A, are plastic connectors with a blue color. They have an overall length of 0.87 inches and a maximum operating temperature of 105 ℃ (221 ℉). These connectors can accommodate 14 AWG (2.5 mm²) to 16 AWG (1.5 mm²) conductors and have a bullet snap plug terminal style. They are recommended for low voltage applications and have a maximum voltage rating of 600 V. - 7000133375
Specifications
Color
Blue
Disconnect Type
Male
Material
Plastic
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
221 °F
Maximum Operating Temperature (Celsius)
105 °C
Overall Length (Imperial)
0.87 In
Overall Length (Metric)
22 mm
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.5 mm²
Minimum Conductor Size (Imperial)
16 AWG
Minimum Conductor Size (Metric)
1.5 mm²
Insulation Material
Nylon
Component
Quick Disconnect
Terminal Type
Disconnect
Fastener Orientation
Male
Terminal Style
Bullet Snap Plug
Features
Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Beveled mouth offers easy insertion of wires
Suitable for use in a terminal block
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
