3M 7100167045 - Scotchlok™ Electrical IDC 804-POUCH, Blue, 18-16 AWG,(solid/stranded), 14 AWG (stranded)
Normally In Stock
Code: 474241
Scotchlok™ Electrical IDC 804-POUCH, Blue, 18-16 AWG,(solid/stranded), 14 AWG (stranded) - 7100167045
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$152.89
Sale Price
$127.41
SOLD BY THE CASE (1 Case = 250 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

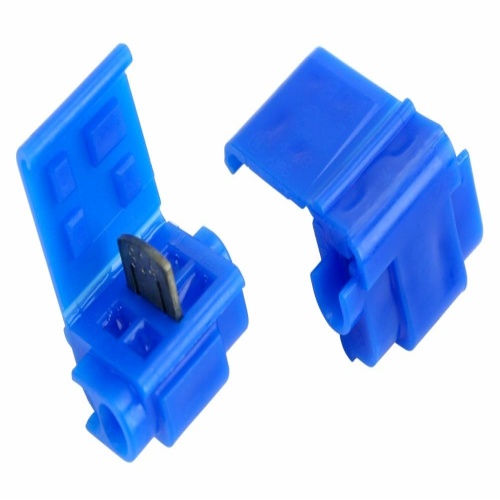

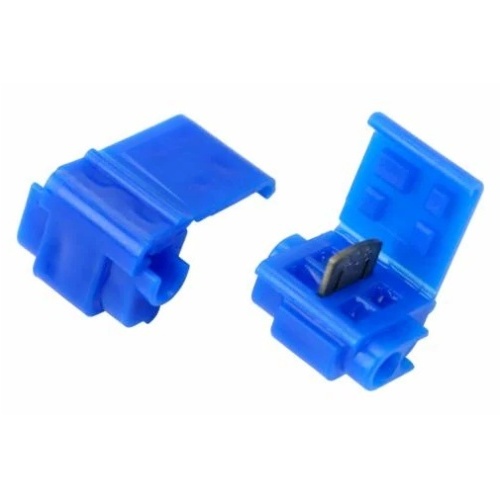

Scotchlok™ IDC Taps & Splices (3MCatalog Number: 804-POUCH) are blue connectors made of plastic with nylon insulation. They can handle temperatures up to 194 °F (90 °C) and are flame-retardant (UL-94 V-2). Suitable for 14-18 AWG stranded conductors, they have a maximum recommended voltage rating of 600 V. Moisture-resistant and filled with grease for corrosion protection, they accommodate up to 2 cores and have a maximum insulation outer diameter of 0.145 in (3.7 mm). Each package contains 25 connectors and the case quantity is 250. Connector tools required are the 3MCrimping Tool E-9BM and/or 9" Lineman's Pliers. - 7100167045
Specifications
Color
Blue
Material
Plastic
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Sub Brand
Scotchlok™
Insulation Material
Nylon
Maximum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
1.5 mm²
Minimum Conductor Size (Imperial)
18 AWG
Component
IDC Taps & Splice
Maximum Conductor Size (Imperial)
14 AWG (Stranded)
Maximum Conductor Size (Metric)
2.5 mm² (Stranded)
Minimum Conductor Size (Metric)
1 mm²
Features
Blue, polypropylene-insulated connector electrically taps into a wire in mid-span without cutting
Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
Accommodates 18 to 14 AWG solid/stranded
RoHS 2011/65/EU Compliant
