Code: 474222

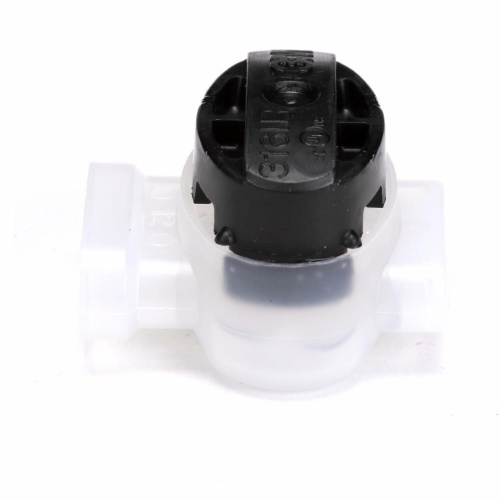

3M 7000058271 - Scotchlok™ Electrical IDC 316IR, Pigtail, Irrigation Applications, Black/White, 22-16 AWG
Normally In Stock
Scotchlok™ Electrical IDC 316IR, Pigtail, Irrigation Applications, Black/White, 22-16 AWG - 7000058271
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$455.71
Sale Price
$379.76
SOLD BY THE CASE (1 Case = 300 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MScotchlok™ IDC Taps & Splices (Catalog Number 316-IR BAG) are connectors designed for low voltage applications. They have a maximum operating temperature of 105℃ (221℉) and can accommodate conductor sizes ranging from 16 AWG to 22 AWG (1.5 mm² to .34 mm²). Made of flame retardant nylon, these connectors are moisture resistant and feature insulation displacement and insulation filling for corrosion protection. They come in a package quantity of 1000 and require the 3MCrimping Tool E-9BM or 8" Mechanics Pliers for installation. - 7000058271
Specifications
Color
Black
Color
White
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
221 °F
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Insulation Material
Nylon
Maximum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
1.5 mm²
Component
IDC Taps & Splice
Material
Flame Retardant Nylon
Features
Helps provide a moisture-resistant seal
Suitable for applications requiring moisture and UV protection
Accommodates 16 to 14 AWG solid/stranded, 12 AWG stranded (outer ports) and 18 AWG solid/stranded, 20 AWG stranded (inner port)
C UL Listed and RoHS 2011/65/EU Compliant
Downloads
No current downloads for this product. Please call us at 888-532-2706 for more information.
