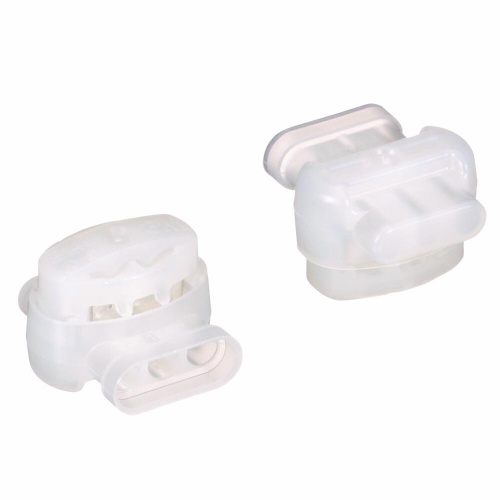

3M 7000058006 - Scotchlok™ Electrical IDC 314U-BIN, Pigtail, Self-Stripping, Flame,Retardant, White, 22-14 AWG
Normally In Stock
Code: 474220
Scotchlok™ Electrical IDC 314U-BIN, Pigtail, Self-Stripping, Flame,Retardant, White, 22-14 AWG - 7000058006
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$524.76
Sale Price
$437.30
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ IDC Taps & Splices, 3MCatalog Number 314U-BIN, are white connectors made of flame retardant nylon. They have a maximum operating temperature of 105 ℃ (221 ℉) and can accommodate conductor sizes ranging from 14 AWG to 22 AWG. These insulation displacement connectors have a voltage rating of 600 V and are designed for low voltage applications. Each package contains 1000 connectors. - 7000058006
Specifications
Color
White
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
221 °F
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Minimum Conductor Size (Imperial)
22 AWG
Maximum Conductor Size (Imperial)
14 AWG
Insulation Material
Nylon
Maximum Conductor Size (Metric)
1.5 mm²
Component
IDC Taps & Splice
Material
Flame Retardant Nylon
Minimum Conductor Size (Metric)
0.5 mm²
Features
White cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
Accommodates a wire range of 1,5 - 2,5 mm2 solid or stranded
