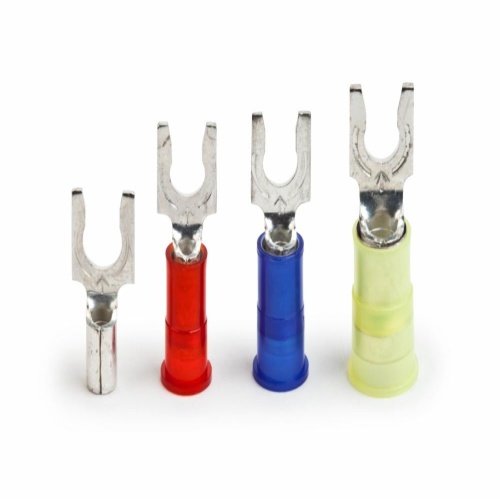

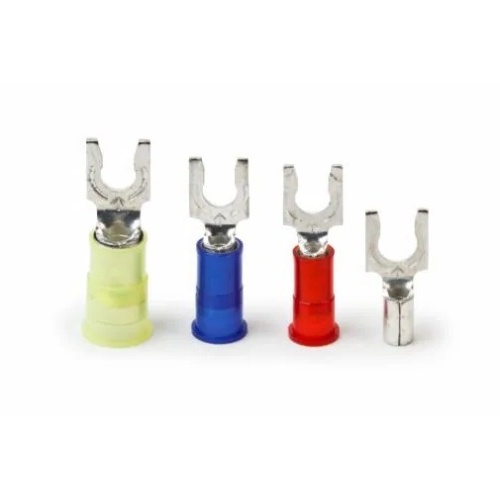

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
3M 7100164284 - Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH18-10FLK, Stud,Size 10
Normally In Stock
Code: 473955
Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH18-10FLK, Stud,Size 10 - 7100164284
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$153.88
Sale Price
$128.23
SOLD BY THE CASE (1 Case = 250 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Fork Terminals (Scotchlok™) with 3MCatalog Number MH18-10FLK are made for secure electrical connections. They have an overall length of 1 inch and can accommodate conductors ranging from 18 to 22 AWG. The terminals are made of heat shrink insulation material and feature a locking terminal style. The barrel style is brazed, with an inside diameter of 0.07 inches. The terminals are designed for a #10 stud size. With dimensions of 0.32 inches in width and 0.25 inches in length, these fork terminals provide reliable and durable connections. - 7100164284
Specifications
Manufacturer
3M
Overall Length (Imperial)
1 In
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Component
Fork Terminals
Maximum Conductor Size (Metric)
.0823 mm²
Terminal Type
Fork
Minimum Conductor Size (Metric)
0.326 mm²
Terminal Style
Locking
Insulation Material
Heat Shrink
Features
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spring-like tongue firmly fits around the stud
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
