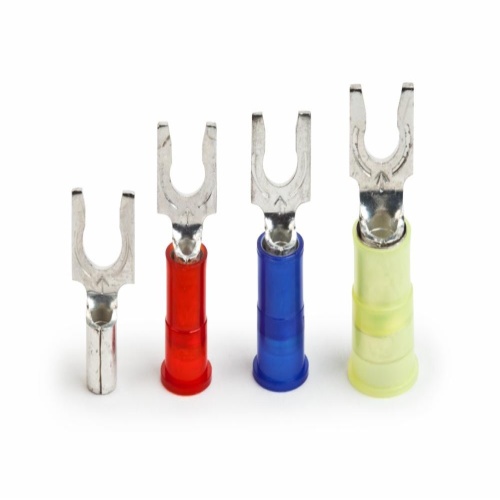

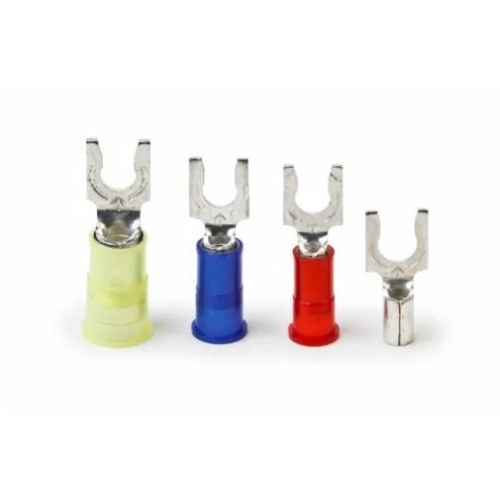

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
3M 7100164273 - Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH14-6FLK, Stud,Size 6
Normally In Stock
Code: 473953
Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH14-6FLK, Stud,Size 6 - 7100164273
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$153.88
Sale Price
$128.23
SOLD BY THE CASE (1 Case = 250 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Fork Terminals (MH14-6FLK) are designed for secure electrical connections. With an overall length of 1 inch and a maximum conductor size of 14 AWG, these heat shrink terminals offer reliable insulation and a locking fork type. The barrel style is brazed with a 0.09-inch inside diameter. The terminals have a #6 stud size and a stud diameter of 0.138 inches. Their compact design, measuring 0.25 inches in overall width and featuring a 0.25 inch barrel length, makes them a practical choice for various applications. - 7100164273
Specifications
Manufacturer
3M
Overall Length (Imperial)
1 In
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Component
Fork Terminals
Terminal Type
Fork
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Terminal Style
Locking
Insulation Material
Heat Shrink
Features
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spring-like tongue firmly fits around the stud
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
