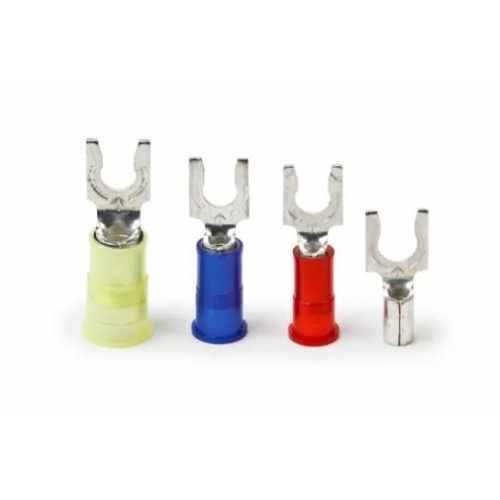

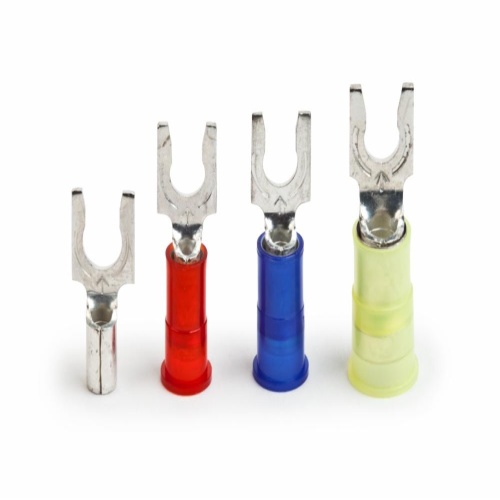

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
3M 7100164269 - Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH10-14FLK, Stud,Size 1/4
Normally In Stock
Code: 473949
Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH10-14FLK, Stud,Size 1/4 - 7100164269
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$173.36
Sale Price
$144.47
SOLD BY THE CASE (1 Case = 250 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Fork Terminals, 3MCatalog Number MH10-14FLK, are ideal for secure electrical connections. With a maximum conductor size of 10 AWG (5.26 mm²) and minimum conductor size of 12 AWG (3.31 mm²), these terminals ensure reliable performance. The heat shrink insulation material provides added protection. These locking fork terminals have an overall length of 1.2 in and an overall width of 0.43 in. The brazed barrel style and locking terminal design offer durability and stability. The terminals have a 0.135 inch barrel inside diameter and a 0.25 inch barrel length. They are designed for a 1/4 inch stud size and have a stud diameter of 0.25 in (6.35 mm). The CSA file number is LR22190. The dimensions are 0.95 inch (E) and clearance (C) is 0.3 inch. - 7100164269
Specifications
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Component
Fork Terminals
Terminal Type
Fork
Terminal Style
Locking
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Insulation Material
Heat Shrink
Overall Length (Imperial)
1.2 In
Features
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spring-like tongue firmly fits around the stud
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
