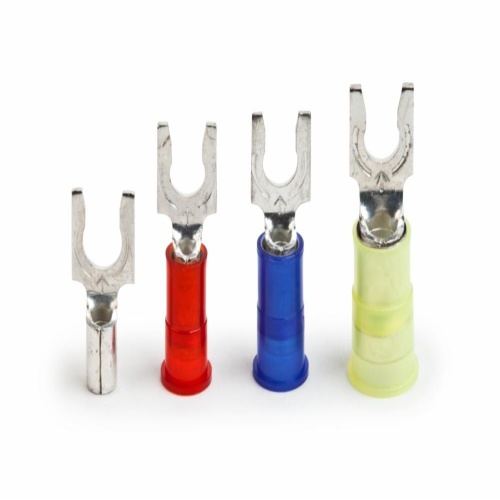

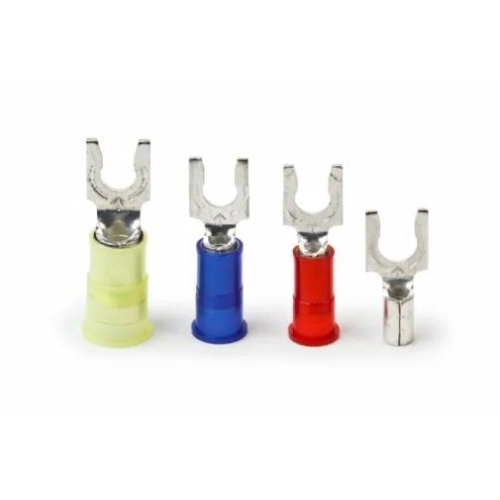

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 473948
3M 7100164268 - Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH10-10FLK, Stud,Size 10
Normally In Stock
Scotchlok™ Locking Fork, Heat Shrink Brazed Seam MH10-10FLK, Stud,Size 10 - 7100164268
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$277.08
Sale Price
$230.90
SOLD BY THE CASE (1 Case = 250 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ MH10-10FLK Fork Terminals are designed for securing and connecting electrical wires. With an overall length of 1 inch and barrel style brazed construction, these terminals can accommodate wires ranging from 12 to 10 AWG. The heat shrink insulation material provides protection against heat. The terminals feature a locking fork design and have a stud size of #10. Overall width is 0.32 inches and barrel length is 0.25 inches. CSA File Number is LR22190. - 7100164268
Specifications
Manufacturer
3M
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Component
Fork Terminals
Terminal Type
Fork
Terminal Style
Locking
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Insulation Material
Heat Shrink
Overall Length (Imperial)
1"
Sub Brand
Scotchlok
Features
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spring-like tongue firmly fits around the stud
Electrolytic copper construction offers good conductivity
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
