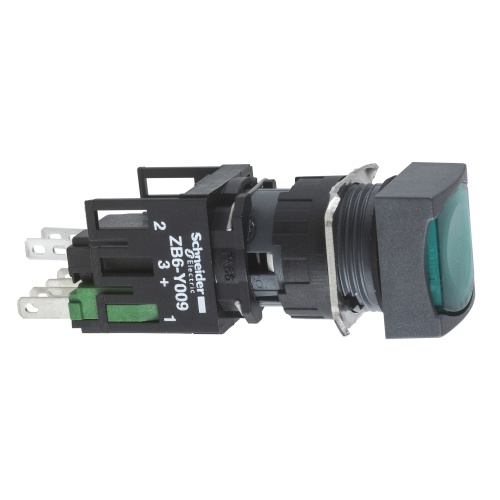

Schneider Electric XB6CW3B1B Harmony 16 mm Square Green Plastic Push Button Illuminated Flush 12-24 V AC/DC 1 NO Modular Complete Assembly
Normally In Stock
Code: 44142
Schneider Electric XB6CW3B1B Harmony 16 mm Square Green Plastic Push Button that is Illuminated with a Flush profile. Uses 12-24 V AC/DC and is a Modular Complete Assembly and has 1 NO and is IP 65 rated and UL 508 certified. *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$50.96
Sale Price
$42.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric XB6CW3B1B Harmony 16 mm Square Green Plastic Illuminated Push Button Modular Complete Assembly with a Flush profile is made for small areas and is designed to be simple and flexible. Has 1 NO contacts with Spring return functionality. uses 12-24 V AC/DC and is IP 65 and UL 508 rated.
Specifications
(Switching-Indication) Operation
Spring Return
(Switching-Indication) NEMA Rating
NEMA 13
(Switching-Indication) NEMA Rating
NEMA 4
(Switching-Indication) Contact Configuration
1 NO
(Switching-Indication) Composition
Plastic
(Switching-Indication) Color
Green
(Switching-Indication) UL Rating
UL 508
(Switching-Indication) Illumination
Illuminated
(Switching-Indication) Size
16 mm
(Switching-Indication) IP Rating
IP 65
(Switching-Indication) Shape
Square
(Switching-Indication) Current Consumption
15 mAmp
(Switching-Indication) NEMA Rating
NEMA 4X
Manufacturer
Schneider Electric
(Switching-Indication) DC Voltage
12-24 Volt
(Switching-Indication) AC Voltage
12-24 Volt
Component
Modular Push Button
Features
Square head
Solder tab or pins for printed circuit board connection
Compact size
