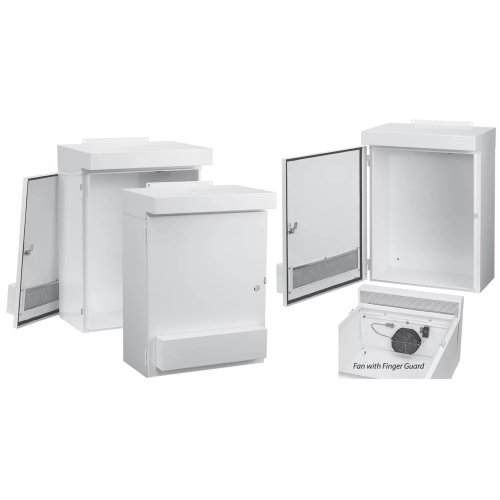

nVent Hoffman WF10LP WEATHERFLO Enclosure with Fan, Type 3R
Normally In Stock
Code: 42522
nVent Hoffman WF10LP WEATHERFLO with Fan, Type 3R Outdoor-Indoor 35" x 24" x 12" (HxWxD) Steel Enclosure. Wall Mount White Powder Coat Galvanized Steel with Quarter Turn latch with lift off hinge door. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1980.12
Sale Price
$1650.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman WF10LP WEATHERFLO Enclosure with Fan, Type 3R WEATHERFLO Enclosure Type 3R outdoor or indoor use with lift off hinged door with quarter turn latch and forced-air ventilation system. Ideal for cooling high-heat producing equipment like drives or other equipment in outdoor applications. Adjustable thermostat 70-140 with active cooling fan and filter with easy accessable washable metal filter, and withtop front hood exhaust door. White powder coat finish for low solar absorbtion, integrated solar shield top and intake cover, welded mounting brackets, terminal power connection for fan, stay in place gasket, and grouding provisions. Studs for adding backplate for mounting equipment.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
White
Enclosure Depth
12"
Enclosure Height
35"
Line
WEATHERFLO
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Width
24"
Enclosure Composition
Steel
Component
Commercial Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure Type
Enclosure With Fan
Manufacturer
Hoffman
Features
Terminal power connection for fan
Adjustable thermostat, 70-140 F (21-60 C)
Active cooling ventilation system with factory-installed fan and filter (115 VAC)
Easily accessible and washable metal filter
Integrated solar shield top and intake cover
White polyester powder finish with low solar absorption
Gasketed door with lift-off hinge design
Grounding provision on door and body
Collar studs provided to mount optional panel, sold separately
External enclosure mounting brackets present
Quarter-turn latch
Enclosures are finished with paint over plated surfaces
