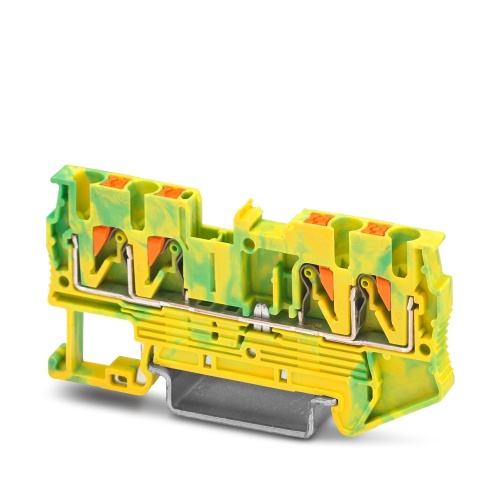

Phoenix Contact 3209594 Protective conductor terminal block PT 2,5-QUATTRO-PE
Normally In Stock
Code: 41685
PT 2,5-QUATTRO-PE Phoenix Contact 3209594 Ground modular Terminal Block - PT 2,5-QUATTRO-PE Push-In Connection 1 Level 5.2 mm with 2 Connections. Grounded, Not Fused Green-Yellow. , max rating.
Condition: New
Usually Ships Same day or Next Day$9.05
Sale Price
$7.54
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3209594 The protective conductor terminal block has four connections that can be made using a push-in connection method and features a rated cross-sectional area of 2.5 mm² with possible cross-sections ranging from 0.14 mm² to 4 mm². It is mounted on an NS 35/7,5 or NS 35/15 base and has a green-yellow color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Max Wire Size
12
Terminal Block Grounded
Grounded
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Ground Terminal Block
Sub Component
Ground Modular Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
Downloads
Phoenix 3209594 CAD data International.dxfPhoenix 3209594 CAD data International.pdfPhoenix 3209594 CAD data International.stpPhoenix 3209594 Certification English-2.pdfPhoenix 3209594 Certification English.pdfPhoenix 3209594 Manufacturers declaration International-2.pdfPhoenix 3209594 Manufacturers declaration International-3.pdfPhoenix 3209594 Manufacturers declaration International.pdfPhoenix 3209594 Product Information English.pdfPhoenix 3209594 Safety note English.pdfPhoenix 3209594 Tender Text English.zipPhoenix 3209594 User instructions for the Ex Area International.pdf
