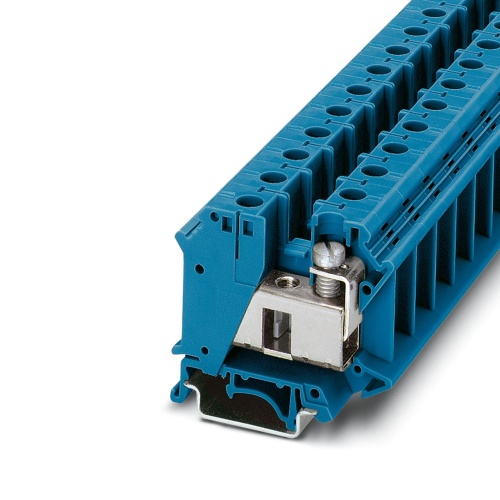

Phoenix Contact 3075731 Installation terminal block UTI 35 BU
Normally In Stock
Code: 41003
UTI 35 BU Phoenix Contact 3075731 Installation Terminal Block - UTI 35 BU Screw Connection 1 Level 15.2 mm with 2 Connections. Not Grounded, Not Fused Blue. 800 Volt, 125 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$12.68
Sale Price
$10.57
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3075731 A terminal block with specific technical specifications is installed, characterized by a nominal voltage of 800 V and a maximum current capacity of 125 A, which can be connected using screws. The terminal block's cross-sectional area ranges from 0.75 mm2 to 35 mm2, and it is mounted using the NS 35/7.5 or NS 35/15 type mounting system, while its color is blue.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
15.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Amperage
125 Amp
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
2
Terminal Block Min Wire Size
18
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Installation Terminal Block
Features
The installation terminal block features a particularly low-profile design and is suitable for wiring in flat installation distributors

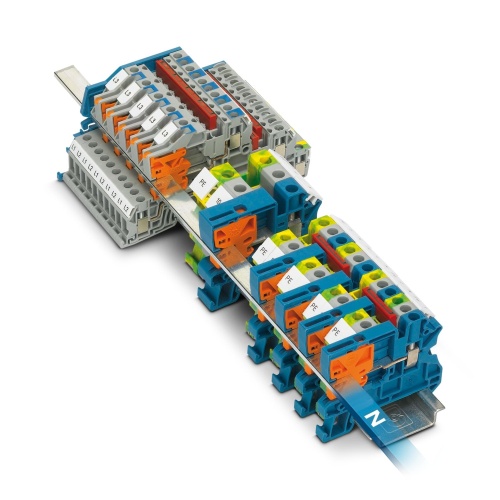

The asymmetrical arrangement of the terminal blocks on the DIN rail enables the neutral busbar to be routed past the terminal blocks
