Code: 40721

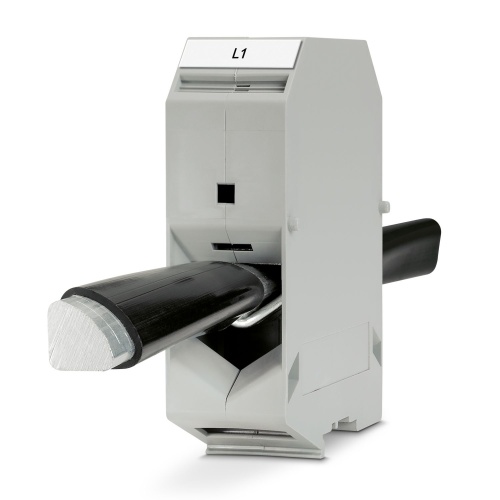

Phoenix Contact 3010217 High-current terminal block UKH 240
Normally In Stock
UKH 240 Phoenix Contact 3010217 High-current Terminal Block - UKH 240 Screw Connection 1 Level 36 mm with 2 Connections. Not Grounded, Not Fused Gray. 1000 Volt, 415 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$109.06
Sale Price
$90.88
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3010217 A high-current terminal block has a nominal voltage of 1000 V and can handle a maximum current of 415 A. It features two connections, secured by screw connections, with rated cross sections ranging from 70 mm2 to 240 mm2. The mounting type is NS 35/15 or NS 32, while the device itself has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
36 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
415 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Model Type
UKH
Features

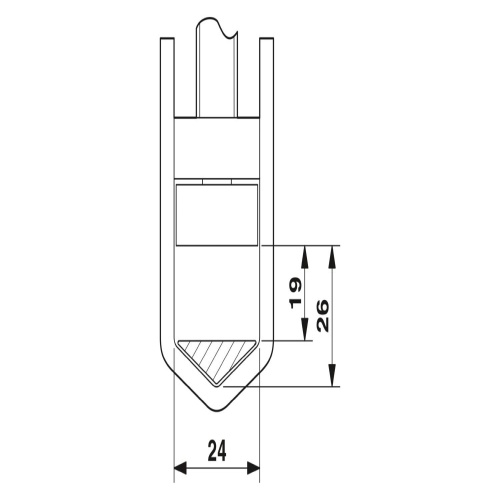

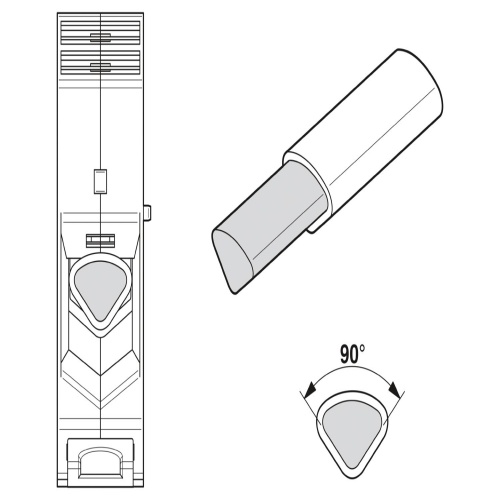

Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
Low contact resistance of the contact surface due to ribbing
Screw locking by means of spring-loaded elements in the clamping part
Downloads
Phoenix 3010217 Application Note International.pdfPhoenix 3010217 CAD data International.dxfPhoenix 3010217 CAD data International.pdfPhoenix 3010217 CAD data International.stpPhoenix 3010217 Certification English-2.pdfPhoenix 3010217 Manufacturers declaration English.pdfPhoenix 3010217 Manufacturers declaration International-2.pdfPhoenix 3010217 Manufacturers declaration International.pdfPhoenix 3010217 Safety note English.pdfPhoenix 3010217 Tender Text English.zipPhoenix 3010217 User instructions for the Ex Area International.pdf
