Code: 40719

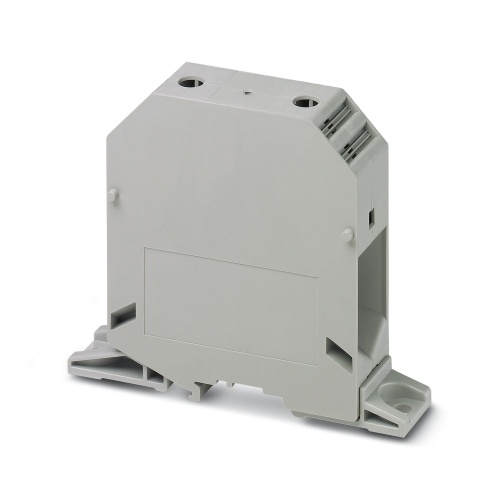

Phoenix Contact 3247035 High-current terminal block UKH 150-F
Normally In Stock
UKH 150-F Phoenix Contact 3247035 High-current Terminal Block - UKH 150-F Screw Connection 1 Level 31 mm with 2 Connections. Not Grounded, Not Fused Gray. 1000 Volt, 309 Amp max rating.
Condition: New
Usually ships within 7-14 days. Call for ship time.$86.33
Sale Price
$71.94
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3247035 A high-current terminal block features a 1000 V nominal voltage and can handle up to 309 A of current. The two connections are secured via screw connections with a rated cross-section of 150 mm2, spanning from 35 mm2 to 150 mm2. This terminal block utilizes a direct screw mounting type and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
31 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
2
Terminal Block Amperage
309 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Model Type
UKH
Features

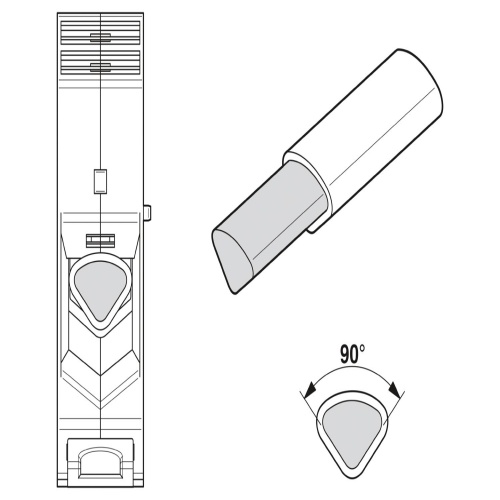

Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
Low contact resistance of the contact surface due to ribbing
Screw locking by means of spring-loaded elements in the clamping part
Downloads
Phoenix 3247035 Application Note International.pdfPhoenix 3247035 CAD data International.dxfPhoenix 3247035 CAD data International.pdfPhoenix 3247035 CAD data International.stpPhoenix 3247035 Manufacturers declaration International.pdfPhoenix 3247035 Safety note English.pdfPhoenix 3247035 Tender Text English.zip
