Code: 40718

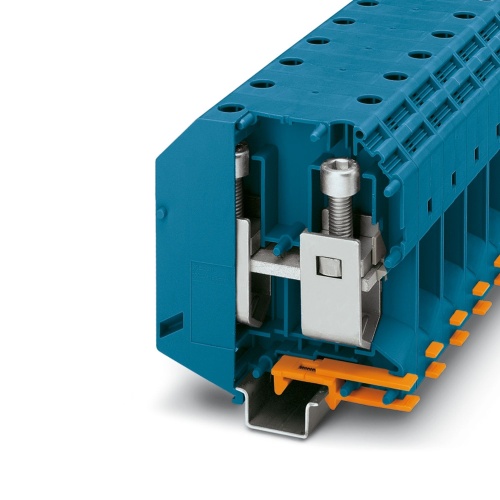

Phoenix Contact 3010123 High-current terminal block UKH 150 BU
Normally In Stock
UKH 150 BU Phoenix Contact 3010123 High-current Terminal Block - UKH 150 BU Screw Connection 1 Level 31 mm with 2 Connections. Not Grounded, Not Fused Blue. 1000 Volt, 309 Amp max rating.
Condition: New
Usually Ships Same day or Next Day$107.27
Sale Price
$89.39
MUST BUY IN PACKS OF 3
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3010123 A high-current terminal block features a nominal voltage rating of 1000 V and a nominal current capacity of 309 A, accommodating two connections per position with screw connections, spanning across cross-sectional areas from 35 mm² to 150 mm². The mounting types include NS 35/15 and NS 32, while the terminal block is distinguished by its blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
31 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
2
Terminal Block Amperage
309 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
High Current Terminal Block
Sub Component
High-Current Terminal Block
Features

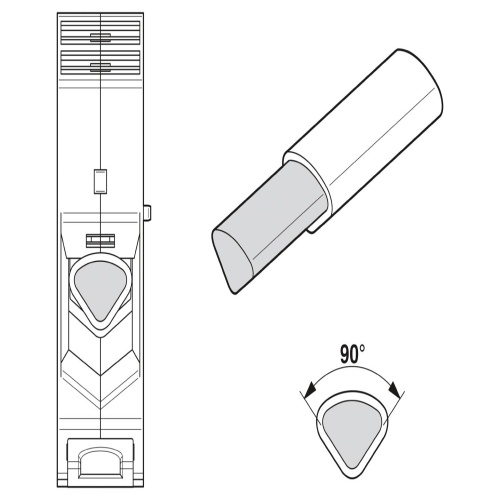

Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base
Low contact resistance of the contact surface due to ribbing
Screw locking by means of spring-loaded elements in the clamping part
Downloads
Phoenix 3010123 Application Note International.pdfPhoenix 3010123 CAD data International.dxfPhoenix 3010123 CAD data International.pdfPhoenix 3010123 CAD data International.stpPhoenix 3010123 Certification English-2.pdfPhoenix 3010123 Manufacturers declaration International-2.pdfPhoenix 3010123 Manufacturers declaration International.pdfPhoenix 3010123 Safety note English.pdfPhoenix 3010123 Tender Text English.zipPhoenix 3010123 User instructions for the Ex Area International.pdf
