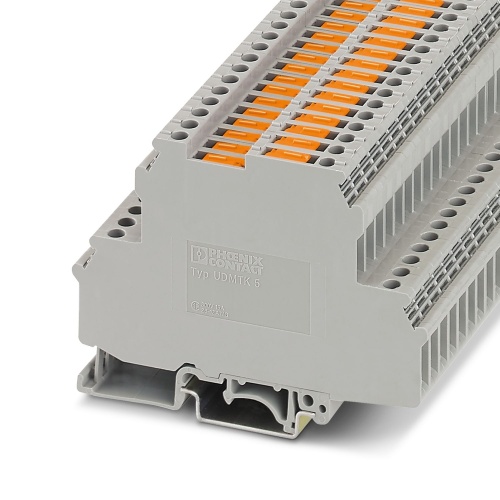

Phoenix Contact 3048467 Feed-through terminal block UDMTK 5
Normally In Stock
Code: 40567
UDMTK 5 Phoenix Contact 3048467 UDMTK 5 Feed Through Terminal Block, nom. voltage: 400 V, nominal current: 10 A
Condition: New
Usually ships within 7-14 days. Call for ship time.$30.18
Sale Price
$25.15
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

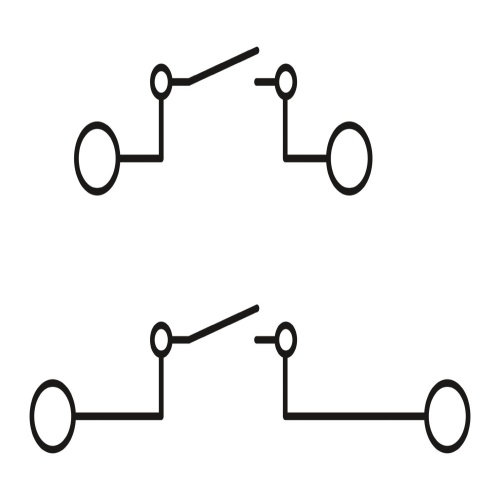

Phoenix Contact 3048467 A terminal block with a nominal voltage of 400V and a nominal current of 10A has two levels of connections. The first level uses screw connections with rated cross sections ranging from 0.2mm² to 4mm², while the second level also utilizes screw connections with similar cross section ratings. The mounting types for this terminal block are NS 35/7.5, NS 35/15, and NS 32, and it is colored gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
400 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Connection Method
Screw Connection
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
24
Terminal Block Disconnect
Removable Disconnect
Terminal Block Amperage
10 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 3048467 CAD data International.dxfPhoenix 3048467 CAD data International.pdfPhoenix 3048467 CAD data International.stpPhoenix 3048467 Manufacturers declaration English.pdfPhoenix 3048467 Manufacturers declaration International-2.pdfPhoenix 3048467 Manufacturers declaration International.pdfPhoenix 3048467 Safety note English.pdfPhoenix 3048467 Tender Text English.zip
