Code: 4034

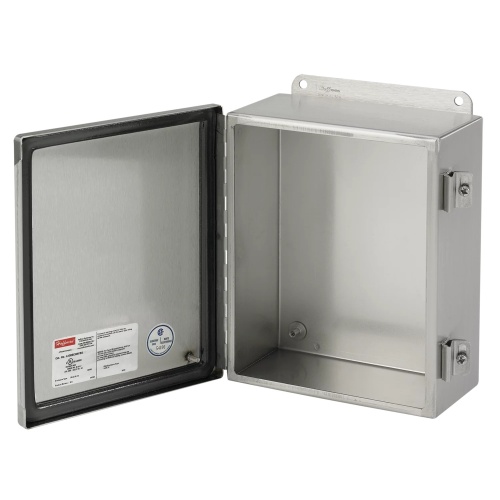

nVent Hoffman A1212CHNFSS6 316 Stainless Steel Enclosure
nVent Hoffman A1212CHNFSS6 Enclosure Stainless Steel 12 x 12 x 6 inch (HxWxD) Type 4x 316 Stainless Steel with stainless steel continuous hinge and stainless steel screws and clamps. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$1288.40
Sale Price
$1073.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A1212CHNFSS6 316 Stainless Steel Enclosure Used in either indoor or outdoor applications, these enclosures combine a rugged continuous hinge, seamless foam-in-place gasket and stainless steel screw-down clamps for a reliable seal that protects components from corrosive environments.
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Composition
316L Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
12"
Enclosure Width
12"
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Latch Type
Screw
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Component
Stainless Steel Enclosure
Manufacturer
Hoffman
Features
Weldnuts provided for mounting optional panels and terminal block kits
Stainless steel screws and clamps
Pull stainless steel continuous hinge pin to remove door
Bonding provision on door and body
Seamless foam-in-place gasket
Seams continuously welded and ground smooth
Downloads
Hoffman A1212CHNFSS6 2D DXF CAD.zipHoffman A1212CHNFSS6 3D STEP CAD.zipHoffman A1212CHNFSS6 CAD Drawing.zipHoffman A1212CHNFSS6 Declaration of Compliance.pdfHoffman A1212CHNFSS6 Dimension Drawing.gifHoffman A1212CHNFSS6 Dimension Drawing.pdfHoffman A1212CHNFSS6 EU Certification.pdfHoffman A1212CHNFSS6 Instruction Manual.pdfHoffman A1212CHNFSS6 Spec Sheet.pdfHoffman A1212CHNFSS6 UL Certification.pdfHoffman A1212CHNFSS6 User Manual.pdf
