Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

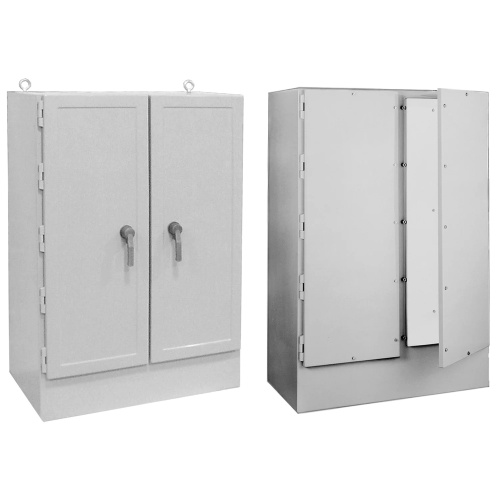

nVent Hoffman A724925FGFS3PT Non-Metallic Fiberglass Enclosure
Normally In Stock
Code: 4020
nVent Hoffman A724925FGFS3PT Enclosure 72 x 49 x 24.5 inch (HxWxD) Type 4X Fiberglass Free-Stand(Floor Mount) Enclosure Hinges are corrosion-resistant fiberglass with Type 316 stainless steel hinge pins. Doors has 3-point latching system with Type 316 stainless steel POWERGLIDE Handle. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$21684.38
Sale Price
$18070.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman A724925FGFS3PT Enclosure 72 x 49 x 24.5 inch (HxWxD) Type 4X Fiberglass Free-Stand(Floor Mount) Enclosure Hinges are corrosion-resistant fiberglass with Type 316 stainless steel hinge pins. Doors has 3-point latching system with Type 316 stainless steel POWERGLIDE Handle.
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Interior Color
White
Enclosure Interior Color
Gray
Enclosure Mount Type
Free-Standing
Enclosure Composition
Fiberglass
Enclosure Latch Type
3 Point
Enclosure Depth
24.5"
Enclosure NEMA Rating
NEMA Type 4
Enclosure NEMA Rating
NEMA Type 4X
Enclosure Height
72"
Enclosure Width
49"
Enclosure Door Type
Solid
Component
Non-Metallic Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 3
Enclosure NEMA Rating
NEMA Type 3R
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
Type 316 stainless steel PowerGlide Handle on handle versions
Fiberglass material is easily punched, drilled, filed or sawed
Models have either a 3-point latching system with handle or stainless steel captivated door screws
Stainless steel captivated door screws on screw versions
Seams are sealed, no holes or knockouts
Fiberglass-reinforced polyester material has excellent temperature and chemical resistance and exhibits outstanding physical properties
Seamless foam-in-place gasket assures a water-tight and dust-tight seal
Hinges are corrosion-resistant fiberglass with Type 316 stainless steel hinge pins
Heavy-duty Type 316 stainless steel lifting eyes
Solid centerpost (not removable) has heavy-gauge stiffener
Painted steel top, bottom and side internal reinforcements standard, stainless steel corner reinforcements optional
Large data pocket (12.00 x 12.00 in. or 305 x 305 mm) is high-impact thermoplastic
Molded-in angular sealing flange directs water away from gasket area
Two white painted, 12-gauge, mild-steel panels included.
Material is halogen free
Downloads
Hoffman A724925FGFS3PT UL Certification.pdfHoffman A724925FGFS3PT Spec Sheet.pdfHoffman A724925FGFS3PT Prop 65 Notification.pdfHoffman A724925FGFS3PT Prop 65 FAQ.pdfHoffman A724925FGFS3PT Instruction Manual.pdfHoffman A724925FGFS3PT EU Certification.pdfHoffman A724925FGFS3PT Dimension Drawing.gifHoffman A724925FGFS3PT Declaration of Compliance.pdfHoffman A724925FGFS3PT CSA Certification.pdfHoffman A724925FGFS3PT CAD Drawing.zipHoffman A724925FGFS3PT 3D STEP CAD.zipHoffman A724925FGFS3PT 2D DXF CAD.zip
