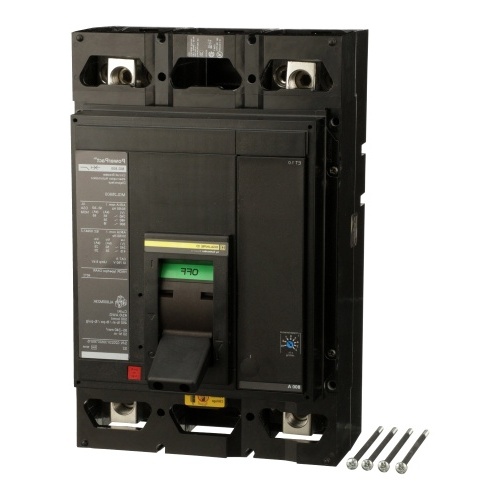

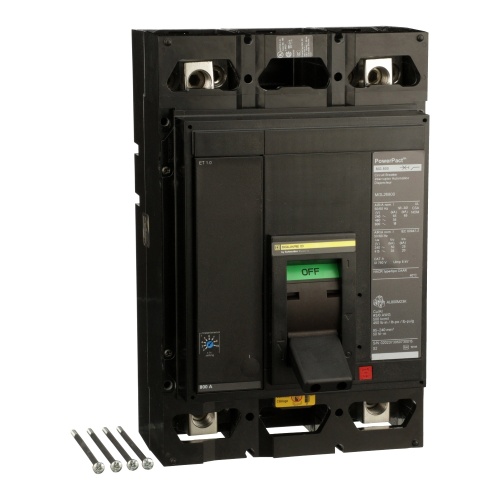

Schneider Electric MGL26800 Square D Breaker M Frame 800 Amp Two Pole
Normally In Stock
Code: 35962
Schneider Electric Square D MGL26800 M Frame Molded Case Circuit Breaker UL 489 Listed, Unit Mount, 800 Amp up to 600 VAC, Two Pole, G Interrupt Rating.
Condition: New
CALL FOR LEAD TIME$10091.69
Sale Price
$8409.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Square D MGL26800 M Frame Molded Case Circuit Breaker UL 489 Listed, Unit Mount, 800 Amp up to 600 VAC, Two Pole, G Interrupt Rating.
Specifications
Poles (Molded Case Breaker)
Two Pole
Interrupt Code (Molded Case Breaker)
G Interrupt Rating
Amperage (Molded Case Breaker)
800 Amp
Frame Type (Molded Case Breaker)
M Frame
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
Unit Mount
UL Listing (Molded Case Breaker)
UL 489
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
35 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
18 Ka 600 Volt
Phase
Single Phase
Number of Jaws
4
Features
Available in 2-3 pole design
Available from 300-800 A at up to 600 Vac
Interrupting ratings (AIR) include G-35 kA, J-65 kA at 480Vac
Available in standard (80%) rating only
Common mounting holes, handle locations and trim dimensions across the range allow design standardization using PowerPacT M- and P-frame circuit breakers
Common accessories across the range of PowerPacT Molded Case Circuit Breakers allow users to make late specification changes
A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility
Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications
IEC Style Rotary Operating Handles
NEMA 9421 Door Mounted Rotary Operating Mechanism
NEMA 9422 Flange Mounted Operating Mechanism in two styles – bracket mounted or cable operated
Available in Unit-mount and I-line constructions
UL 489 Listed, CSA, NMX, IEC certified for world wide applications
