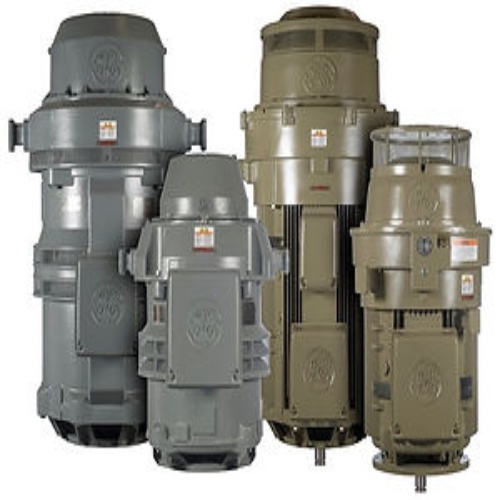

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 359252
GE 5KS445XAJ6408 VSS TEFC, 150 HP, 1800 RPM
Normally In Stock
GE 5KS445XAJ6408 - 150 HP - 1800 RPM - L445VP16 Frame - 460 Max Volt - TEFC - Cast Iron - Nema Design B - 12856lbs Down Thrust - High Thrust - Nema Premium Efficient
Condition: New
Usually ships Same Day or Next Day$27694.27
Sale Price
$23078.56
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
GE 5KS444DAJ6074 - GE's XSD Ultra 841 VSS (Vertical Solid Shaft) Motors are designed for extra severe-duty applications with 2 or 4 poles. They have agency approvals from UL and CSA, suitable for altitudes up to 3300 ft and an ambient temperature of 40ºC. These motors feature low balance/vibration, cast iron bearing caps with sealed protection, and inverter capabilities for PWM operation. They have a cast iron frame, operate at 60Hz, and offer NEMA Premium efficiency.
Specifications
Motor Horsepower
150 HP
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor RPM's
1800 RPM
Motor Enclosure Type
TEFC
Motor Insulation Class
Class H Insulation
Motor Construction
Cast Iron
Manufacturer
GE
Efficiency
96%
Motor Frame Model
L445VP16
Down Thrust (lbs)
12856 Lbs.
Features
The Wolong GE XSD Ultra 841 VSS motor is a Totally Enclosed Fan Cooled (TEFC) Extra Severe Duty design built for vertical solid shaft inline pump and high-thrust applications. Engineered to meet IEEE 841 standards, it delivers high durability, superior performance, and reliable operation in harsh and demanding environments.
This motor offers a horsepower range from 3 to 400 HP and is available in 2- or 4-pole configurations. It operates at 460 or 575 volts and is designed for 60 Hz operation, de-rated for 50 Hz where noted on the nameplate. The motor meets NEMA Design B characteristics, ensuring dependable torque and stable performance during startup and operation.
The XSD Ultra 841 VSS carries UL Component and Insulation System Recognition and CSA certification for motors, confirming compliance with major North American standards. It is rated for operation at ambient temperatures up to 40°C and altitudes up to 3300 feet. Each motor is precision-balanced to 0.075 inches per second (max) to minimize vibration and ensure smooth vertical operation.
The motor’s mechanical design is robust and corrosion-resistant, with a cast iron frame, end shields, fan cover, and conduit box. The conduit box is gasketed and rotatable in 90-degree increments for flexible wiring access. All fasteners are SAE Grade 5 for strength and vibration resistance. Bearing caps are cast iron and sealed, offering exceptional protection.
The bearing protection system provides an IP55 rating and utilizes non-contact rotating labyrinth seals—on both ends for frames 182–286, and on the drive end for frames 324–445. The bearing arrangement consists of deep groove ball bearings for the guide bearing and double-row angular contact ball bearings for the thrust bearing, ensuring long life and high load capacity. The bearings are designed for an L10 life of 50,000 hours when direct coupled.
Lubrication systems vary by frame size: frames 182–286 use Polyurea grease, while frames 324–445 use oil lubrication for the upper thrust bearings. The design includes a stainless steel T-drain for moisture removal, and a ground lug in both the conduit box and motor frame for secure grounding.
Additional features include four lifting lugs cast into the frame for safe handling and installation, and mounting holes machined per NEMA standards for precise alignment. The motor uses a vertical P-base mounting configuration. A 316 stainless steel nameplate is provided for durability and corrosion resistance.
The fan system uses non-sparking plastic or bronze fan blades, enclosed in a cast iron fan cover, ensuring safety and long-lasting reliability. The motor features buff epoxyester paint, providing a strong protective finish for severe-duty environments.
Electrically, the motor uses Class H insulation with the GEGARD2400 insulation system, which is non-hygroscopic and anti-fungal. This insulation system withstands 2400 volts at a 0.1 microsecond rise time and exceeds NEMA MG1-31 standards for variable frequency drive operation. The XSD Ultra 841 VSS is inverter duty rated, suitable for INF:1 variable torque operation, and designed for PWM (pulse width modulation) inverter use.
The rotor is cast aluminum, providing efficient performance and long-term durability. The shaft dimensions conform to API 610 12th Edition standards, meeting critical specifications for pump-driven systems. The motor is finished to IEEE 841 requirements, ensuring reliability and resistance to contamination, vibration, and corrosion.
The service factor is 1.15, allowing for short-term overload capacity, with a temperature rise of 80°C at 1.0 service factor. The motor is rated for continuous duty (S1) operation and undergoes NEMA routine testing to ensure mechanical and electrical consistency.
The top hat is constructed of cast iron, matching the motor’s rugged frame design. Each motor includes a special Division 2 temperature code, with an auto ignition temperature (AIT) of 200°C stamped on the nameplate for hazardous location compliance.
