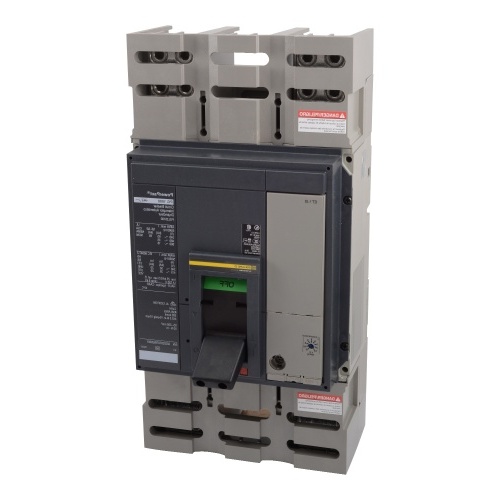

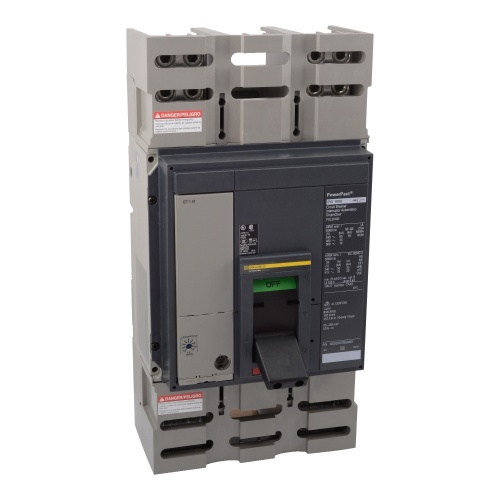

Schneider Electric PGL36100CU31A Square D Breaker P Frame 1000 Amp Three Pole
Normally In Stock
Code: 35294
Schneider Electric Square D PGL36100CU31A P Frame Molded Case Circuit Breaker UL 489 Listed, Unit Mount, 1000 Amp up to 600 VAC, Three Pole, G Interrupt Rating.
Condition: New
CALL FOR LEAD TIME$39534.00
Sale Price
$32945.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Square D PGL36100CU31A P Frame Molded Case Circuit Breaker UL 489 Listed, Unit Mount, 1000 Amp up to 600 VAC, Three Pole, G Interrupt Rating.
Specifications
Poles (Molded Case Breaker)
Three Pole
Interrupt Code (Molded Case Breaker)
G Interrupt Rating
Amperage (Molded Case Breaker)
1000 Amp
Frame Type (Molded Case Breaker)
P Frame
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
Unit Mount
UL Listing (Molded Case Breaker)
UL 489
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
65 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
35 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
18 Ka 600 Volt
Features
Available in 2-3-4 pole design.
Available from 100-1200 A, up to 600 Vac.
nterrupting ratings (AIR) include G-35 kA, J-65 kA, K-50 kA and L-100 kA at 480Vac.
Available in standard (80%) or 100% rating.
Available with Micrologic® trip units with power metering and monitoring capabilities.
Common mounting holes, handle locations and trim dimensions across the range allow design standardization for PowerPacT M- and P-frame circuit breakers.
Common accessories across the range of PowerPact Molded Case Circuit Breakers allow users to make late specification changes.
A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility.
Optional Ground Fault protection with nine adjustable ground fault pickup levels and five tripping delays using Micrologic 6.0 trip unit.
PG, PJ, PL have zone-selective interlocking capability (ZSI). Micrologic trip unit 5.0 has short-time ZSI and 6.0 has both short-time and ground-fault ZSI.
Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications.
• IEC Style Rotary Operating Handles
NEMA 9421 Door Mounted Rotary Operating Mechanism.
NEMA 9422 Flange Mounted Operating Mechanism in two styles – bracket mounted or cable operated.
Available in Unit-mount, I-line, and drawout (factory-installed option only) constructions.
2-3 pole automatic molded case switches available at up to1200 A.
UL 489 Listed, CSA, NMX, IEC certified for worldwide applications.
