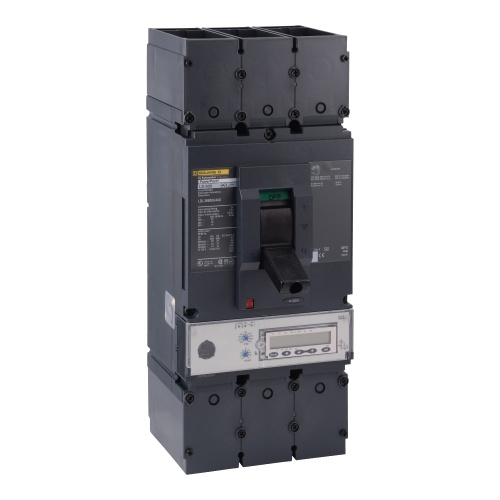

Schneider Electric LDL36400CU44X L Frame Square D Breaker 400 Amp Three Pole
Normally In Stock
Code: 34711
Schneider Electric Square D LDL36400CU44X L Frame Molded Case Circuit Breaker UL 489 Listed Unit Mount 400 Amp up to 600 VAC, Three Pole, D Interrupt Rating
Condition: New
CALL FOR LEAD TIME$11725.93
Sale Price
$9771.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Square D LDL36400CU44X L Frame Molded Case Circuit Breaker UL 489 Listed Unit Mount 400 Amp up to 600 VAC, Three Pole, D Interrupt Rating
Specifications
Interrupt Code (Molded Case Breaker)
D Interrupt Rating
Poles (Molded Case Breaker)
Three Pole
Frame Type (Molded Case Breaker)
L Frame
Amperage (Molded Case Breaker)
400 Amp
Maximum Voltage (Molded Case Breaker)
600 VAC
Mounting (Molded Case Breaker)
Unit Mount
UL Listing (Molded Case Breaker)
UL 489
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
18 Ka 480 Volt
Interrupt Rating (Molded Case Breaker)
25 Ka 240 Volt
Interrupt Rating (Molded Case Breaker)
14 Ka 600 Volt
Features
Available in 3-4 pole design.
Available from 250-600 A, up to 600 Vac and 250 Vdc.
Interrupting ratings (AIR) include D-18 kA, G-35 kA, J-65 kA and L-100 kA at 480 Vac and 20 kA at 250 Vdc.
Available in standard (80%) or 100% rating (250 A and 400 A only).
Common accessories across the range of PowerPact Molded Case Circuit Breakers allow users to make late specification changes.
A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility.
Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications:
IEC Style Rotary Operating Handles.
NEMA 9421 Door Mounted Rotary Operating Mechanism.
NEMA 9422 Flange Mounted Operating Mechanism in two styles – bracket mounted or cable operated.
Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy.
Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs, and lug shields.
Available in Unit mount (lug-lug, rear, bus bar), I-line or Drawout constructions.
3-4 pole automatic molded case switches available at 400 A and 600 A.
Motor Circuit Protectors trip units available at 400 A and 600 A.
UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked for global acceptance.
