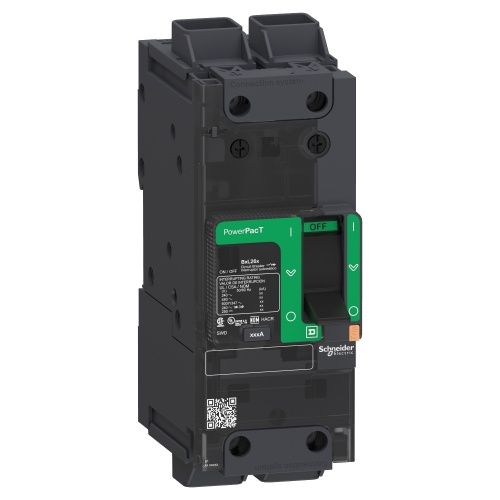

Schneider BGL26125 Square D Breaker B Frame 125 Amp Two Pole
Normally In Stock
Code: 32849
Schneider Electric Square D BGL26125 B Frame Molded Case Circuit Breaker UL 489 Listed Din Rail Mount 125 Amp up to 480 VAC or 250 VDC, Two Pole, G Interrupt Rating
Condition: New
Usually ships Same Day or Next Day$2117.66
Sale Price
$1764.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Square D BGL26125 B Frame molded case circuit breaker is the perfect combination of performance and features. This breaker has a max voltage of 480 VAC or 250 VDC and a rated current of 125 Amps. This Two Pole breaker is built with Din Railmount to make it easy to install in any industrial setting. With a G Interrupt Rating, this breaker can handle 240 Volt 65 kA Interrupt, 480 Volt 35 kA Interrupt, and 600 Volt 18 kA Interrupt and is UL 489 Listed.
Specifications
Poles (Molded Case Breaker)
Two Pole
Amperage (Molded Case Breaker)
125 Amp
Interrupt Code (Molded Case Breaker)
G Interrupt Rating
Interrupt Rating (Molded Case Breaker)
240 Volt 65 Ka Interrupt
Interrupt Rating (Molded Case Breaker)
480 Volt 35 Ka Interrupt
Interrupt Rating (Molded Case Breaker)
600 Volt 18 Ka Interrupt
Frame Type (Molded Case Breaker)
B Frame
UL Listing (Molded Case Breaker)
UL 489
Mounting (Molded Case Breaker)
DIN Rail
Maximum Voltage (Molded Case Breaker)
250 VDC
Maximum Voltage (Molded Case Breaker)
480 VAC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Features
It offers 25% more capacity in less than two-thirds the size of legacy 100 A circuit breakers. Save time in electrical design, mounting, and wiring with PowerPacT B. It comes with integrated DIN rail mounting and built-in control wire terminals.
Tackles last minute changes. When they come up, be ready with one-click field installable accessories and the industry’s widest range of operating mechanisms.

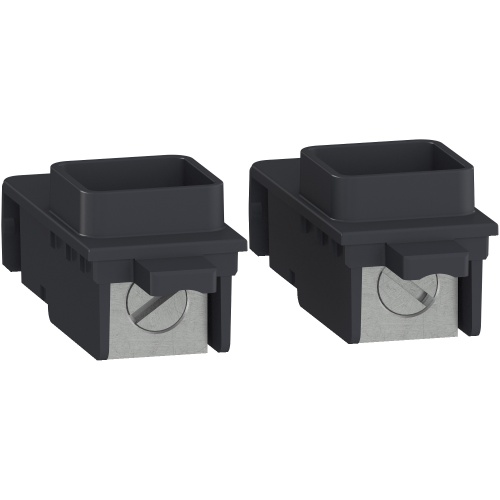

PowerPacT B provides fast startup and fewer call-backs. EverLink lugs combat cable creep and deliver a durable, long-term connection. All PowerPacT B-frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. This further reduces the let-through currents and enhances equipment protection.
