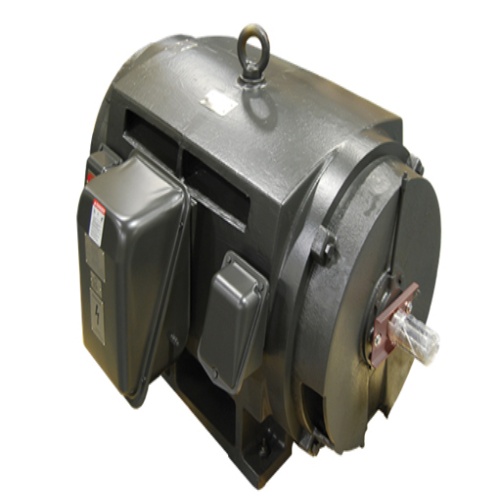

Toshiba 0152DPSA31AP General Purpose Open Drip Motor 15 HP 230 Volt 460 Volt 3 Phase
Normally In Stock
Code: 32072
Toshiba 0152DPSA31AP General Purpose Open Drip Motor 15 HP 230 Volt 460 Volt 3 Phase Open Drip-Proof 3600 RPM 36.8 Amp,18.4 Amp Continuous Duty Cast Iron with Class F Insulation.
Condition: New
Usually ships Same Day or Next Day$1910.63
Sale Price
$1592.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Toshiba 0152DPSA31A-P - 60 Hz - Nema Design B - Motor Frame Model: 215T
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
15 HP
Motor Frame Model
215T
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Manufacturer
Toshiba Motors
Motor Amperage (Full Load)
18.4 Amp
Motor Frame Construction
Cast Iron
Motor Amperage (Full Load)
36.8 Amp
Motor Enclosure Type
Open Drip Proof
Features
Toshiba’s general purpose, medium voltage open drip proof motors include a high torque and low vibration design, meeting the industry’s ever-increasing need for improved energy conservation and product reliability.
With our in-house design, engineering, and manufacturing capabilities, we can completely customize each motor to your specific application requirement.
