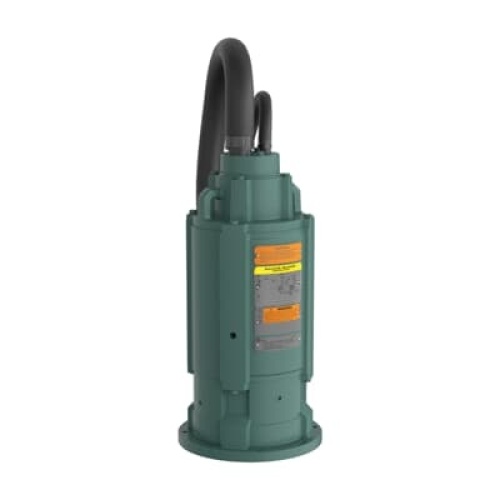

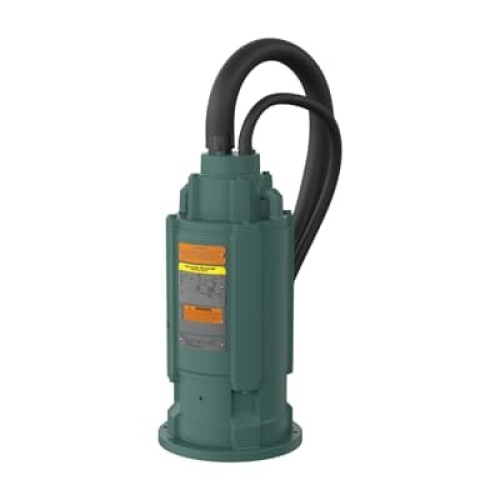

Baldor SUM70754SM-4 - XPNV, 3 Phase, 7.5 HP, 60 Hz
Normally In Stock
Code: 314737
Baldor SUM70754SM- 4 - Explosion- Proof Non- Vented - 1750 RPM - 7.5 HP - Iron - 180TY Frame - Class F Insulation - Continuous Duty
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$9428.29
Sale Price
$7856.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Baldor SUM70754SM-4 - Baldor-Reliance® pump motors offer significant value across various applications, ranging from industrial wastewater treatment to fire suppression systems and commercial pools. These motors enhance reliability and substantially decrease maintenance costs. Designed with energy efficiency in mind, they meet NEMA Premium® efficiency standards and are inverter ready, featuring wide variable torque speed ranges. The construction of these motors can be customized to suit specific applications and industries, such as food processing, washdown applications, or explosion-proof enclosures for pumps in hazardous areas. Key features include compliance with efficiency regulations in the US, Canada, and Mexico, a dynamically balanced rotor to minimize noise and increase bearing life, and color-coded and numbered leads for easy connectivity during installation. With these attributes, Baldor-Reliance® pump motors offer optimal performance and reliability for a diverse range of pumping applications.
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
7.5 HP
Motor Frequency
60 Hz
Motor Duty Cycle
Continuous Duty
Motor NEMA Design
NEMA Design B
Motor Enclosure Type
Explosion-Proof Non-Vented
Motor Frame Model
180TY
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Motor RPM's
1750 RPM
Features
For continuous duty in water/sewage wet and dry pit applications. 25-ft cable for deep well operations (longer cable available)
UL Listed, CSA certified for CSA certified for Class 1 Division 1 Groups C & D with a T3C temperature code (T2A for inverter use)
Multiple sealing layers—including dual mechanical seals with an oil chamber, moisture probes, and secure epoxy-filled cable entries—ensure reliable operation even when fully submerged
Designed for durability, with a cast iron frame and end shield, 316 stainless steel hardware, a 416 stainless steel shaft, epoxy-sealed cable entry, and O-ring seals on all machined fits.
Inverter rated insulation system, Class 1 Division 1 Group D, T2A. Meets NEMA MG1, Part 31
Inpro/seals at drive end and opposite drive end
