Code: 307428

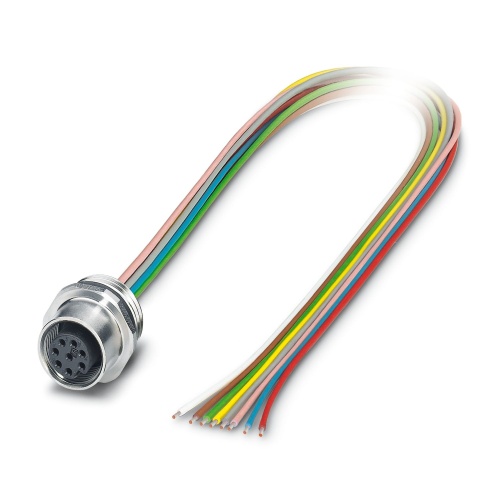

Phoenix Contact 1239858 Device connector front mounting SACC-E-M12FS-8CON-M16/0,5 VAX
Normally In Stock
Phoenix Contact 1239858 - 8 Positions - CuZn - 48 V - IP65, IP67, IP69, IP69K - Individual Wire Connection - M12
Condition: New
Usually ships Same Day or Next Day$37.92
Sale Price
$31.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1239858 This device connector features a front-mounted design and can be attached to any standard device, accommodating an 8-position M12 socket with straight ends. The cable end is coded "A" and is free for use on the other end of the connection. It includes a mounting screw thread of M16 x 1.5 mm and uses individual wires that are 0.25 mm2 in size, wrapped in TPE litz wire for added protection. The item meets lead-free standards under RoHS II regulations without any exemptions, with less than 0.1% lead content.
Specifications
Connector Material
Cuzn
Connector protection
IP67
Connector protection
IP69
Connector protection
IP65
Connector protection
IP69K
Manufacturer
Phoenix Contact
Number of Positions
8
Connector Voltage
48 Volt
Component
Device Connector-Front Mounting
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
For high transmission safety: shield connection to the housing with optional EMC nut
