Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 306934
Phoenix Contact 1238711 Device connector front mounting SACC-E-M12MS-8CON-M16/0,5 VAX
Normally In Stock
Phoenix Contact 1238711 - 8 Positions - Cu Alloy - IP65, IP67, IP69, IP69K - Individual Wire Connection
Condition: New
Usually ships Same Day or Next Day$36.04
Sale Price
$30.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

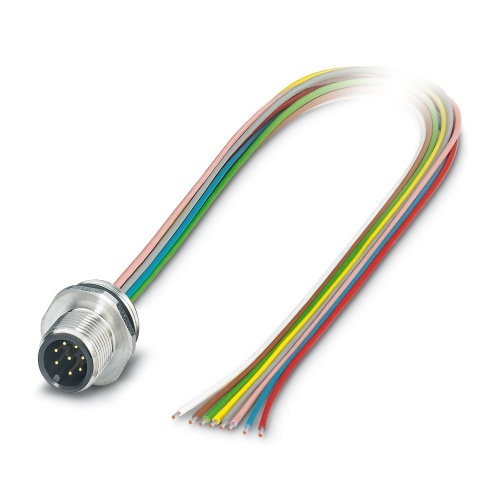

Phoenix Contact 1238711 The device connector features a front-mounting design and is compatible with universal use, utilizing an M12-Standard pin configuration. It has eight positions for straight pins, coding system A located on the free cable end, and is mounted using an M16 x 1.5 nut. The individual wires are made of TPE litz wire, with a cable length of 0.5 meters, consisting of 0.25 mm2 conductors. This item meets lead-free requirements according to RoHS II standards, ensuring less than 0.1% of lead content.
Specifications
Connector Material
Cu Alloy
Connector protection
IP67
Connector protection
IP69
Connector protection
IP65
Connector protection
IP69K
Manufacturer
Phoenix Contact
Number of Positions
8
Component
Device Connector-Front Mounting
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
For high transmission safety: shield connection to the housing with optional EMC nut
