Phoenix Contact 2906798 Surge protection device TTC-6-1X2-24DC-UT
Normally In Stock
Code: 27425

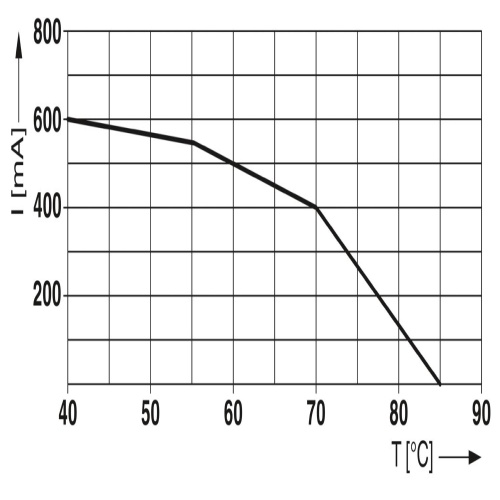

TTC-6-1X2-24DC-UT Phoenix Contact Transient Surge Suppressor TTC-6-1X2-24DC-UT Din rail mount Surge Protection for a 2-wire floating signal circuit 4-20 mA or 0-20 mA. Nominal voltage: 24 V DC. Current rating 600 mA. Screw connections
Condition: New
Usually ships Same Day or Next Day$147.74
Sale Price
$123.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

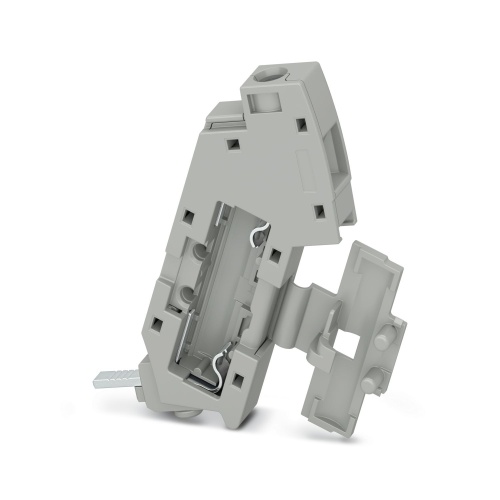

Related Products
Description

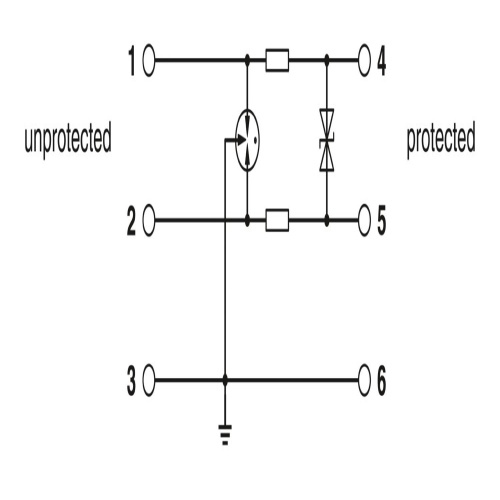

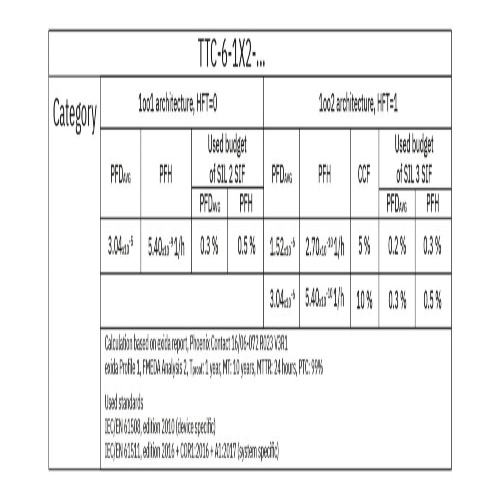

Phoenix Contact 2906798 A suitable surge protection device is required for a 2-wire floating signal circuit with an operating current range of 0-4 mA and 4-20 mA, which also meets the HART compatibility standard. This type of protection can be used in safety-related circuits up to SIL level 3, indicating it can withstand high levels of fault tolerance and reliability.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Fault Warning
Multi-Stage
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Push-In Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
10 Ka
Component
Surge Protection Device
Features

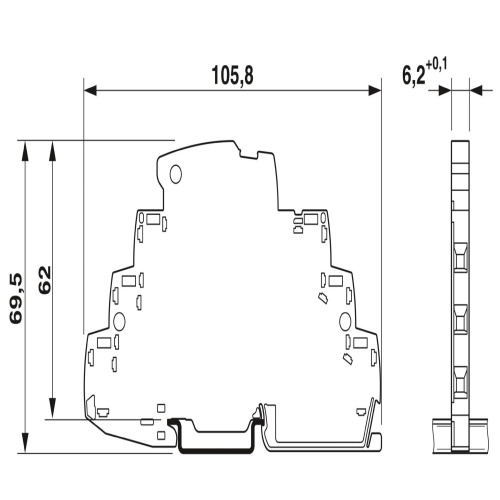

Space saving with a narrow overall width of just 6 mm
Cost-optimized with tailored product features
Easy selection for all possible demands in MCR applications with a complete product portfolio
Downloads
Phoenix 2906798 Application Note English.pdfPhoenix 2906798 CAD data International.dxfPhoenix 2906798 CAD data International.pdfPhoenix 2906798 CAD data International.stpPhoenix 2906798 Certification International-2.pdfPhoenix 2906798 Certification International-3.pdfPhoenix 2906798 Certification International.pdfPhoenix 2906798 Flyer English-2.pdfPhoenix 2906798 Flyer English.pdfPhoenix 2906798 Manufacturers declaration English.pdfPhoenix 2906798 Manufacturers declaration International.pdfPhoenix 2906798 Product Information English.pdfPhoenix 2906798 Surge Protection English.pdfPhoenix 2906798 Tender Text English.zip
