Code: 267994

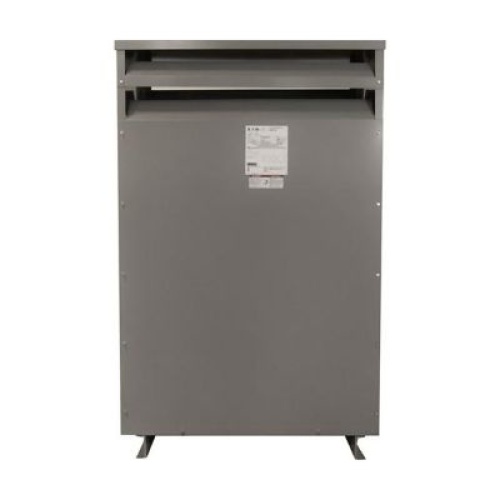

Eaton N47M48B1516CU Ventilated Transformer - 15 kVA Three Phase
Normally In Stock
Eaton N47M48B1516CU - Three Phase - 15 kVA - Primary Voltage: 480Y/277V - Secondary Voltage: 480V - 36.88" x 24.88" x 21.13" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$17035.93
Sale Price
$14196.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton N47M48B1516CU - K-Factor, Copper windings, NEMA 2, 60 Hz, 220°C, 15 kVA , Three-phase, 480Y/277V, 480 Delta Vac, NEMA ST-20, 80°C, 15 kVA, 480Y/277 Vac-480 Vac, DOE 2016
Specifications
Transformer Voltage Phases
Three Phase
Transformer VoltAmp
15 Kva
Manufacturer
Eaton
Component
Ventilated Transformer
Transformer Primary Voltage In
480 Volt
Transformer Secondary Voltage Out
208Y/120 Volt
Features
Compliant to DOE 2016 and NEMA TP-1 efficiency standards, and transformers with other efficiency requirements
Specially designed to withstand the harmful overheating effects caused by harmonics generated by nonlinear (non-sinusoidal) loads
Neutral bus size configured to accommodate at least 200% of the rated current compensates for increased neutral currents found in non-linear loads, thus reducing heat
Electrostatic shield reduces transient noise in the system which may affect sensitive computer loads
Transformers include a versatile bonding/grounding bar affixed to the bottom panel as standard, to provide compliance with NEC 450.10(A)
Custom K-Factors available through the Flex Center
