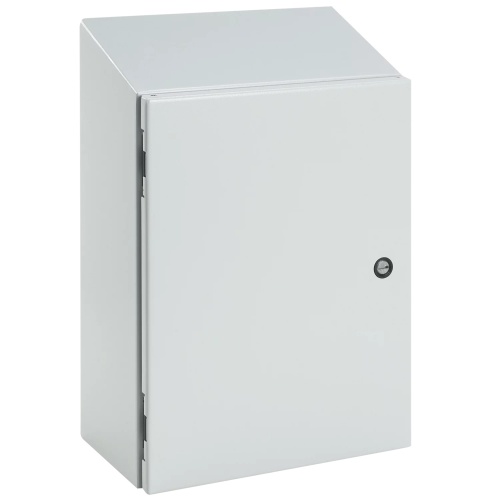

nVent Hoffman CSD12126ST CONCEPT Slope Top Steel Enclosure
Normally In Stock
Code: 2616
nVent Hoffman CSD12126ST 12" x 12" x 6" Type 4,Type 12, Type 13 Wall Mount Mild Steel Slope Top Enclosure with hinged door and quarter turn latches. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$637.56
Sale Price
$531.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman CSD12126ST CONCEPT Slope Top Steel Enclosure CONCEPT Steel Slope Top Enclosure is ideal for machine control applications requiring a slope top. 20 degree slope top with treamlined styling, flush quarter-turn latches, hinged door and an attractive, durable finish. Removable door with hidden hinges, simple easy-to-remove and install hinge pins with captivation clip, door opens 210 degree, stay in place gasket, and door bonding provision. Door provisions for data pocket, holes for mounting in back, studs for adding backplate for mounting equipment with gray finish and white interior. Includes hardware kit with panel mounting nuts, grounding hardware, and sealing washers.
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Latch Type
Quarter Turn
Enclosure Interior Color
Gray
Enclosure Composition
Painted Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure Height
12"
Enclosure Width
12"
Line
CONCEPT
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
Steel Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Manufacturer
Hoffman
Features
High-torque threadless studs and fasteners on door
Corner-formed door
Simple easy-to-remove and install hinge pins with built-in captivation clip
Illustrated instruction sheet
Panel-mounting studs fit optional Concept panels and other accessories
Bonding provision on door and body
External formed body flange channels away liquids
Mounting holes in back of body for optional external mounting brackets
Quarter-turn latches
Seamless foam-in-place gasket
Door opens 210 degrees
Larger sizes support 19-in. rack mounting
Door alignment device on doors wider than 30-in.
20-degree sloped top
Minimum-width body flange provides maximum door opening
Downloads
Hoffman CSD12126ST 2D DXF CAD.zipHoffman CSD12126ST 3D STEP CAD.zipHoffman CSD12126ST CAD Drawing.zipHoffman CSD12126ST Declaration of Compliance.pdfHoffman CSD12126ST Dimension Drawing.gifHoffman CSD12126ST EU Certification.pdfHoffman CSD12126ST Instruction Manual.pdfHoffman CSD12126ST Spec Sheet.pdfHoffman CSD12126ST UL Certification.pdf
